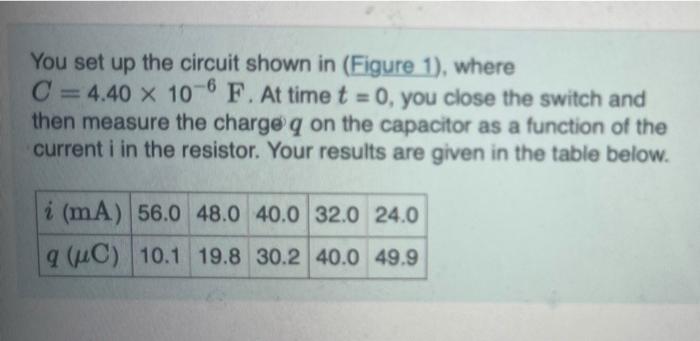

You set up the circuit shown in (Figure 1), where C =4.40 x 10-6 F. At time t = 0, you close the switch and then measure the charge q on the capacitor as a function of the current i in the resistor. Your results are given in the table below. i (mA) 56.0 48.0 40.0 32.0 24.0 9 (C) 10.1 19.8 30.2 40.0 49.9

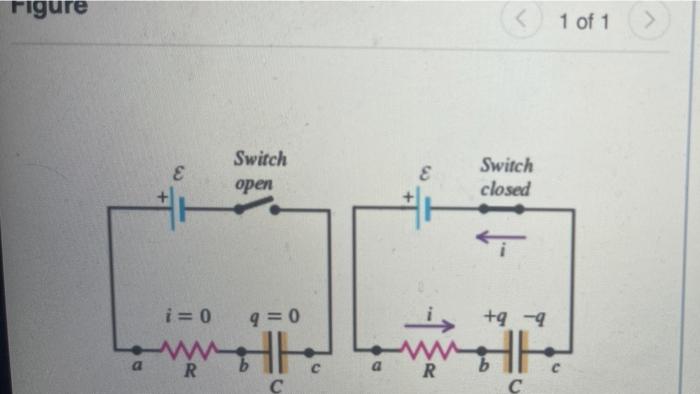

Figure 1 of 1 E Switch open E Switch closed i=0 q=0 i ta a H R R с с
NO SO 40 (C) 30 20 10 . 00 100 20.0 40.0 50.0 60.0 30.0 i (mA) Previous Answers Correct

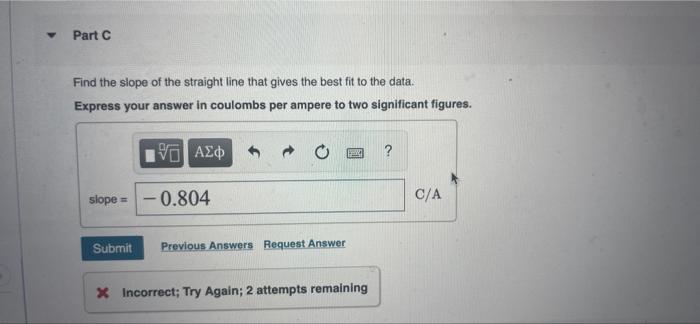

Part Find the slope of the straight line that gives the best fit to the data. Express your answer in coulombs per ampere to two significant figures. Ή ΑΣφ ? slope = -0.804 C/A Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining

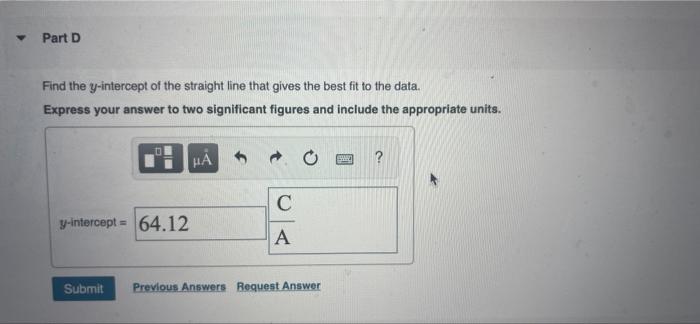

Part D Find the y-intercept of the straight line that gives the best fit to the data. Express your answer to two significant figures and include the appropriate units. HD НА o С y-intercept = 64.12 A Submit Previous Answers Request Answer

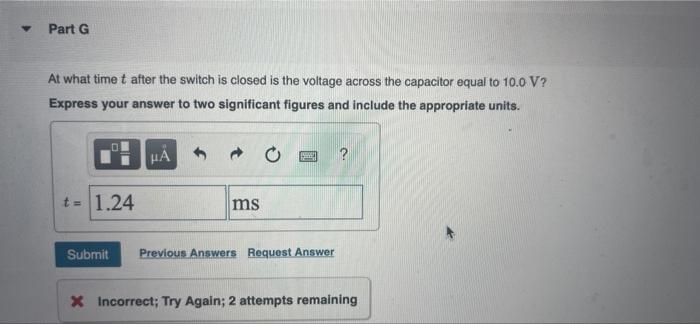

Part G At what time t after the switch is closed is the voltage across the capacitor equal to 10.0 V? Express your answer to two significant figures and include the appropriate units. НА ? t = 1.24 ms Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining

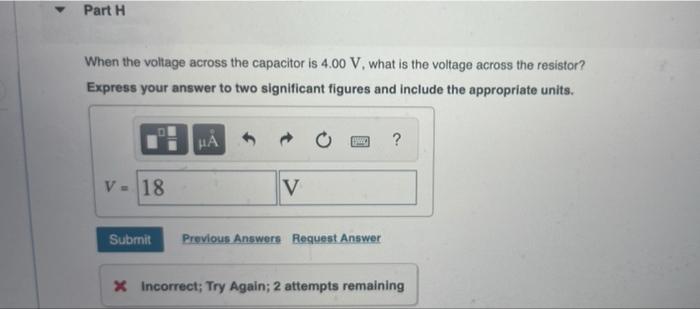

Part 1 When the voltage across the capacitor is 4.00 V, what is the voltage across the resistor? Express your answer to two significant figures and include the appropriate units. HA ? V = 18 V Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining
You set up the circuit shown in (Figure 1), where C =4.40 x 10-6 F. At time t = 0, you close the switch and then measure
-
