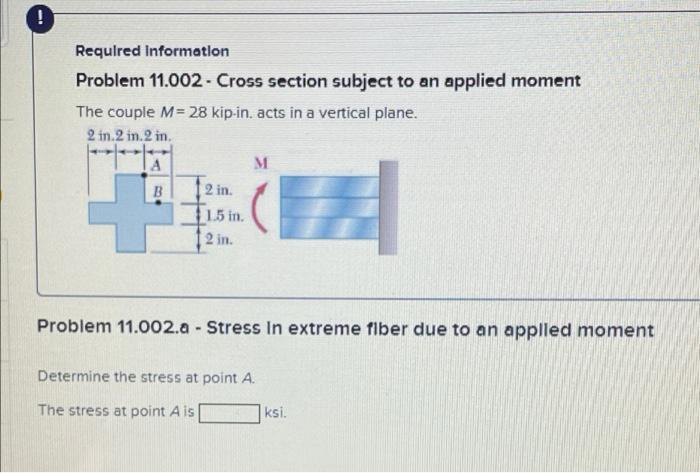

Required Information Problem 11.002 - Cross section subject to an applied moment The couple M= 28 kip-in. acts in a vertical plane. 2 in 2 in2in. A M B 2 in. 1.5 in. 2 in. Problem 11.002.a - Stress in extreme fiber due to an applied moment - Determine the stress at point A. The stress at point Ais ksi.

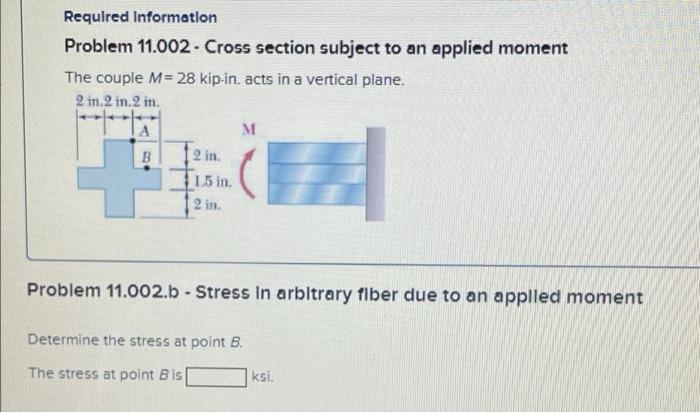

Required Information Problem 11.002 - Cross section subject to an applied moment The couple M= 28 kip-in. acts in a vertical plane. 2 in.2 in. 2 in. А M B 15 in. 2 in. 2 in. Problem 11.002.b - Stress in arbitrary fiber due to an applied moment Determine the stress at point B. The stress at point Bis ksi.
