A 3-phase, 11kV, 25MAV Generator with Xo = 0.05 p.u, Xi = 0.2 p.u. and X2 =0.2 p.u is grounded through a reactance of 0.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A 3-phase, 11kV, 25MAV Generator with Xo = 0.05 p.u, Xi = 0.2 p.u. and X2 =0.2 p.u is grounded through a reactance of 0.

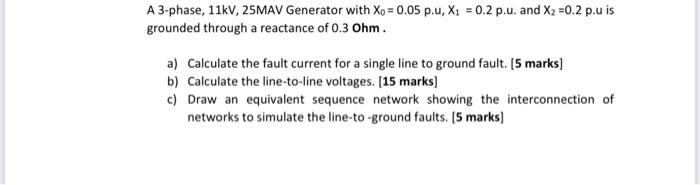

A 3-phase, 11kV, 25MAV Generator with Xo = 0.05 p.u, Xi = 0.2 p.u. and X2 =0.2 p.u is grounded through a reactance of 0.3 Ohm. a) Calculate the fault current for a single line to ground fault. [5 marks] b) Calculate the line-to-line voltages. [15 marks] c) Draw an equivalent sequence network showing the interconnection of networks to simulate the line-to-ground faults. (5 marks)
