For the circuit shown in the following figure, with e(t) as the input voltage and i(t) as the output current, and state

Post by answerhappygod »

For The Circuit Shown In The Following Figure With E T As The Input Voltage And I T As The Output Current And State 1
For The Circuit Shown In The Following Figure With E T As The Input Voltage And I T As The Output Current And State 1 (39.71 KiB) Viewed 24 times

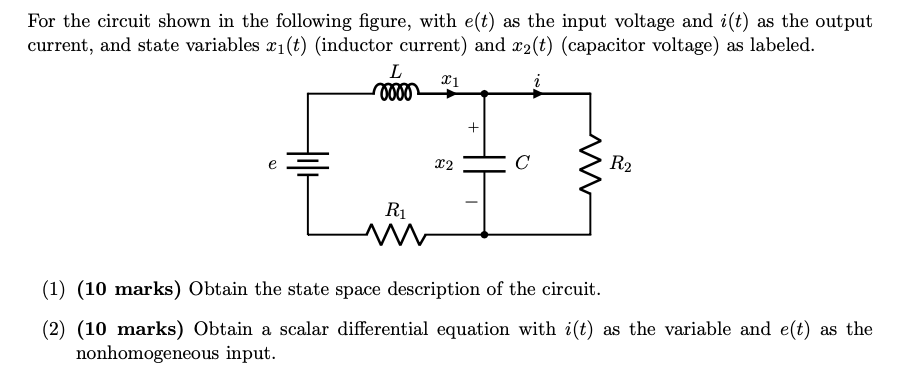

For the circuit shown in the following figure, with e(t) as the input voltage and i(t) as the output current, and state variables xi(t) (inductor current) and x2(t) (capacitor voltage) as labeled. L i 0000 21 + 12 с R2 Ri w (1) (10 marks) Obtain the state space description of the circuit. (2) (10 marks) Obtain a scalar differential equation with i(t) as the variable and e(t) as the nonhomogeneous input.
