Question 6 For the circuit shown below, what the maximum value of the output waveform Vout, assuming REAL silicon diode

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 6 For the circuit shown below, what the maximum value of the output waveform Vout, assuming REAL silicon diode

Post by answerhappygod »

Question 6 For The Circuit Shown Below What The Maximum Value Of The Output Waveform Vout Assuming Real Silicon Diode 1
Question 6 For The Circuit Shown Below What The Maximum Value Of The Output Waveform Vout Assuming Real Silicon Diode 1 (25.18 KiB) Viewed 24 times

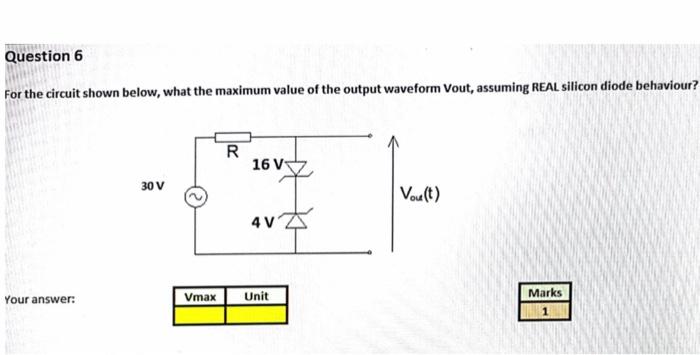

Question 6 For the circuit shown below, what the maximum value of the output waveform Vout, assuming REAL silicon diode behaviour? R 16 V 30 V Vout) 4V Your answer: Vmax Unit Marks 1
