QUESTION 3 A 400 kV transmission line consists of two bundle ACSR Pheasant conductors (diameter=35,1mm), with phase spac

Post by answerhappygod »

Question 3 A 400 Kv Transmission Line Consists Of Two Bundle Acsr Pheasant Conductors Diameter 35 1mm With Phase Spac 1
Question 3 A 400 Kv Transmission Line Consists Of Two Bundle Acsr Pheasant Conductors Diameter 35 1mm With Phase Spac 1 (44.86 KiB) Viewed 24 times

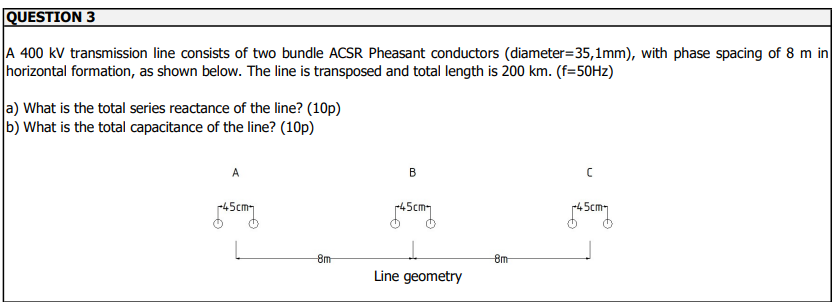

QUESTION 3 A 400 kV transmission line consists of two bundle ACSR Pheasant conductors (diameter=35,1mm), with phase spacing of 8 min horizontal formation, as shown below. The line is transposed and total length is 200 km. (f=50Hz) a) What is the total series reactance of the line? (10p) b) What is the total capacitance of the line? (10p) А B C +5cm, 845cm 845cmy 8m 8m Line geometry
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
