4.2 Conversion of a J-K flip-flop to a T-type flip-flop Design and simulate a T-type flip-flop from a J-K flip-flop with

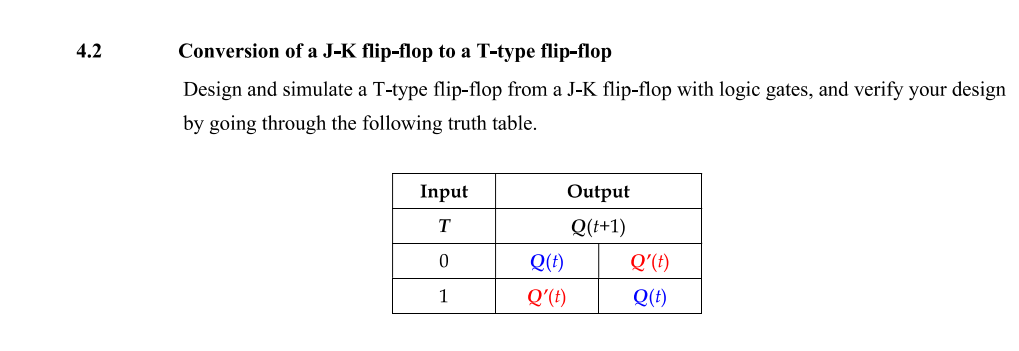

4.2 Conversion of a J-K flip-flop to a T-type flip-flop Design and simulate a T-type flip-flop from a J-K flip-flop with logic gates, and verify your design by going through the following truth table. Input т Output Q(t+1) Q(t) Q'(t) Q'(t) Q(t) 0 1
