2 ΜΩ 1 ΜΩ 50 ΚΩ 1 uF HH Error e(t). 50 ΚΩ 400 ΚΩ 100 ΚΩ Output m(t) An error signal o(t) = 15 +0.5 xt volts (where I is
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2 ΜΩ 1 ΜΩ 50 ΚΩ 1 uF HH Error e(t). 50 ΚΩ 400 ΚΩ 100 ΚΩ Output m(t) An error signal o(t) = 15 +0.5 xt volts (where I is

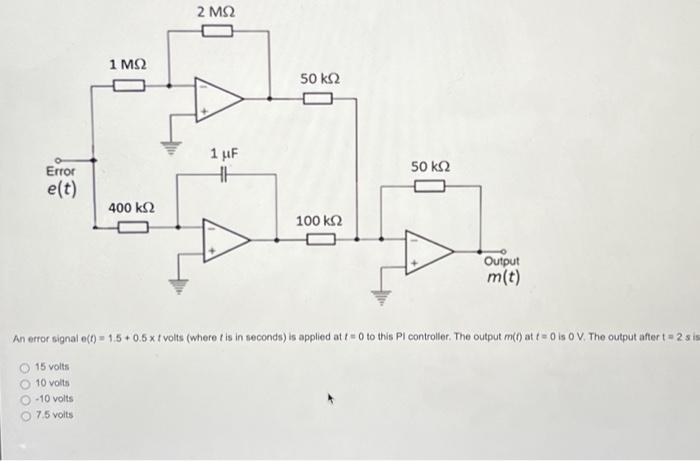

2 ΜΩ 1 ΜΩ 50 ΚΩ 1 uF HH Error e(t). 50 ΚΩ 400 ΚΩ 100 ΚΩ Output m(t) An error signal o(t) = 15 +0.5 xt volts (where I is in seconds) is applied att to this Pi controller. The output m() at t=0 is OV. The output after t = 28 15 volts 10 volts -10 volts 7.5 volts
