Q3. [30 marks The electro-magnet shown in Figure Q.3 is made of a magnetic material, which has a linear B-H magnetisatio

Post by answerhappygod »

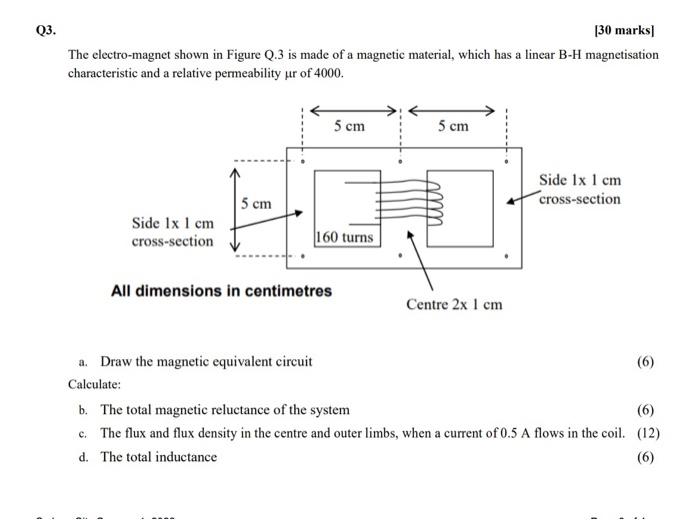

Q3 30 Marks The Electro Magnet Shown In Figure Q 3 Is Made Of A Magnetic Material Which Has A Linear B H Magnetisatio 1
Q3 30 Marks The Electro Magnet Shown In Figure Q 3 Is Made Of A Magnetic Material Which Has A Linear B H Magnetisatio 1 (32.86 KiB) Viewed 15 times
Q3. [30 marks The electro-magnet shown in Figure Q.3 is made of a magnetic material, which has a linear B-H magnetisation characteristic and a relative permeability ur of 4000. 5 cm 5 cm Side 1x 1 cm cross-section 5 cm w Side Ix 1 cm cross-section 160 turns All dimensions in centimetres Centre 2x 1 cm a. Draw the magnetic equivalent circuit (6) Calculate: b. The total magnetic reluctance of the system (6) c. The flux and flux density in the centre and outer limbs, when a current of 0.5 A flows in the coil. (12) d. The total inductance (6) c.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
