Q2a. [10 marks A certain load draws a current of 15 A at a lagging power factor of 0.6 from a 110 V, 60 Hz source. What

Post by answerhappygod »

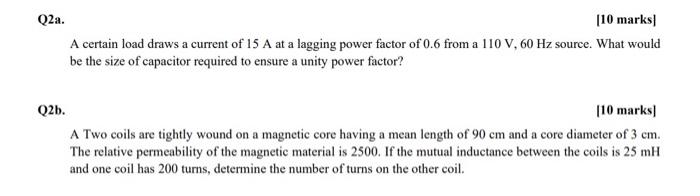

Q2a 10 Marks A Certain Load Draws A Current Of 15 A At A Lagging Power Factor Of 0 6 From A 110 V 60 Hz Source What 1
Q2a 10 Marks A Certain Load Draws A Current Of 15 A At A Lagging Power Factor Of 0 6 From A 110 V 60 Hz Source What 1 (19.06 KiB) Viewed 31 times
Q2a. [10 marks A certain load draws a current of 15 A at a lagging power factor of 0.6 from a 110 V, 60 Hz source. What would be the size of capacitor required to ensure a unity power factor? Q2b. [10 marks A Two coils are tightly wound on a magnetic core having a mean length of 90 cm and a core diameter of 3 cm. The relative permeability of the magnetic material is 2500. If the mutual inductance between the coils is 25 mH and one coil has 200 turns, determine the number of turns on the other coil.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
