Q2. Signal conditioning is an important step for sensor integration. Look at the diagram below, please (1) explain how t

[answerhappygod]

Q2 Signal Conditioning Is An Important Step For Sensor Integration Look At The Diagram Below Please 1 Explain How T 1 (263.57 KiB) Viewed 18 times

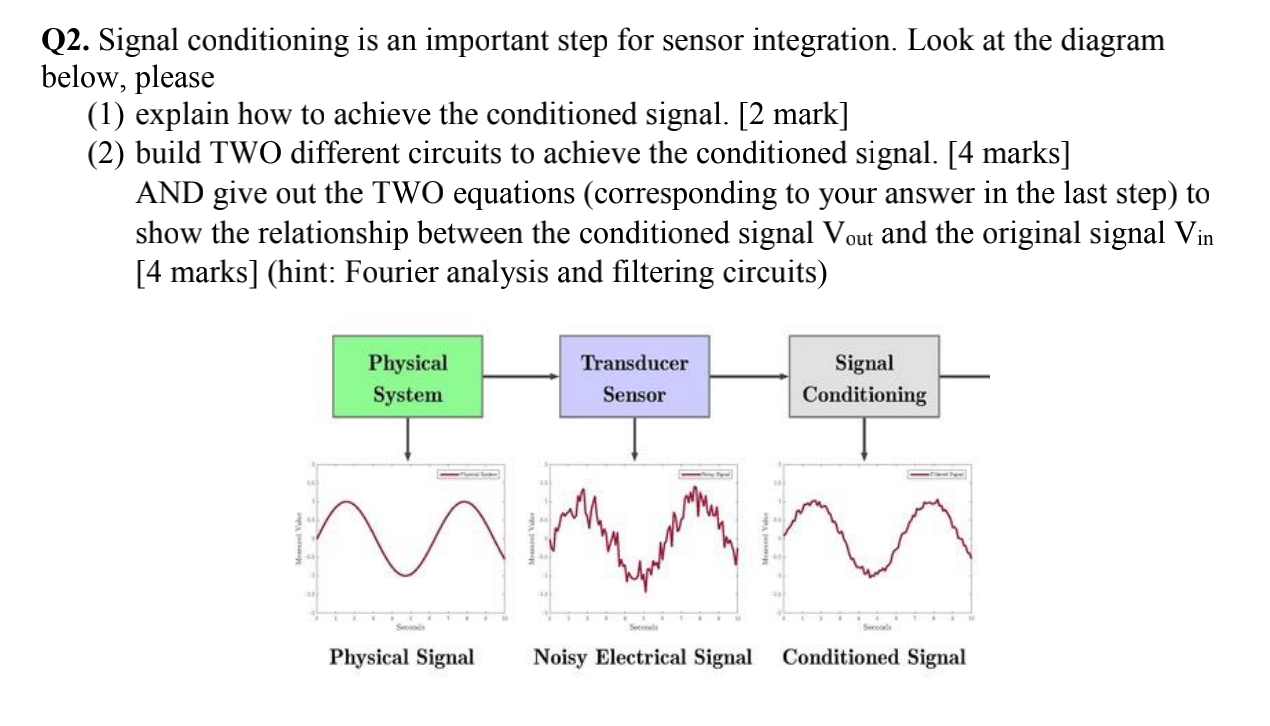

Q2. Signal conditioning is an important step for sensor integration. Look at the diagram below, please (1) explain how to achieve the conditioned signal. [2 mark] (2) build TWO different circuits to achieve the conditioned signal. [4 marks] AND give out the TWO equations (corresponding to your answer in the last step) to show the relationship between the conditioned signal Vout and the original signal Vin [4 marks] (hint: Fourier analysis and filtering circuits) Physical System Transducer Sensor Signal Conditioning Physical Signal Noisy Electrical Signal Conditioned Signal
