Referring to the register transfer system below, determine the transfer operation, which will happen if the control comb

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Referring to the register transfer system below, determine the transfer operation, which will happen if the control comb

Post by answerhappygod »

Referring To The Register Transfer System Below Determine The Transfer Operation Which Will Happen If The Control Comb 1
Referring To The Register Transfer System Below Determine The Transfer Operation Which Will Happen If The Control Comb 1 (40.13 KiB) Viewed 20 times

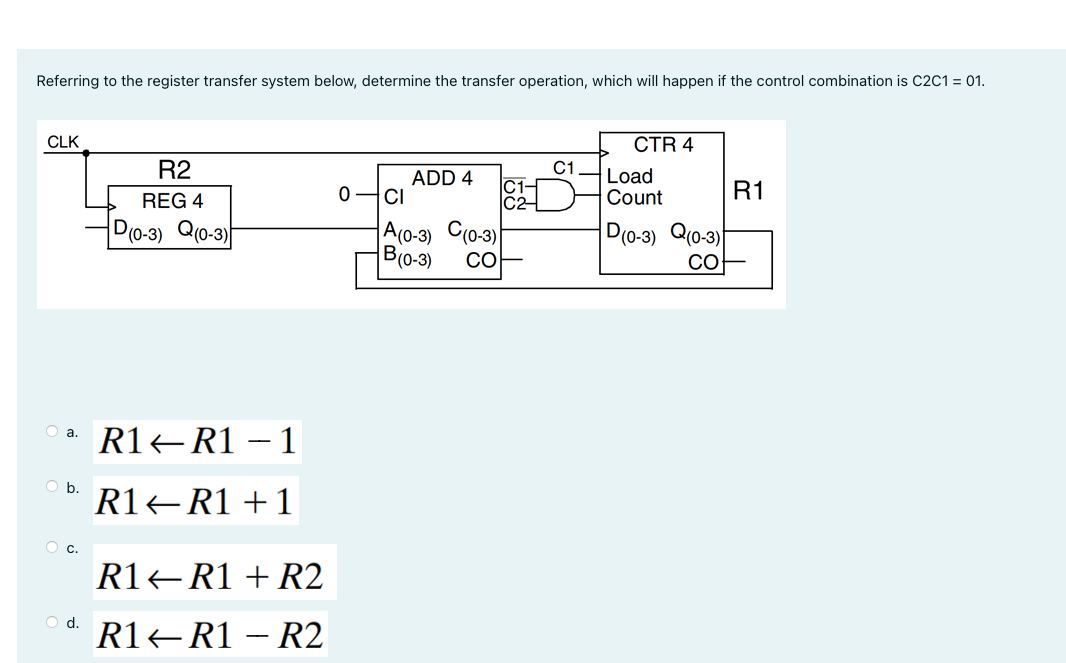

Referring to the register transfer system below, determine the transfer operation, which will happen if the control combination is C2C1 = 01. CLK C1 R2 REG 4 D(0-3) Q(0-3) 0 ADD 4 C11 CI A(0-3) C(0-3) CO CTR 4 Load Count R1 D(0-3) Q(0-3) CO B(0-3) a. R14 R1 - 1 b. R1R1 + 1 O c. R14 R1 + R2 d. R1R1 – R2
