1. Task Students are required to design and simulate a 6th order band pass active filter using Op-Amp. The circuit must

Post by answerhappygod »

1 Task Students Are Required To Design And Simulate A 6th Order Band Pass Active Filter Using Op Amp The Circuit Must 1
1 Task Students Are Required To Design And Simulate A 6th Order Band Pass Active Filter Using Op Amp The Circuit Must 1 (45.35 KiB) Viewed 24 times
NOtic that
1 - Mid Gain, = 50
2 - Low Cut-off, fL (Hz) = 7K
3 - High Cut-off, fH (Hz) = 50K

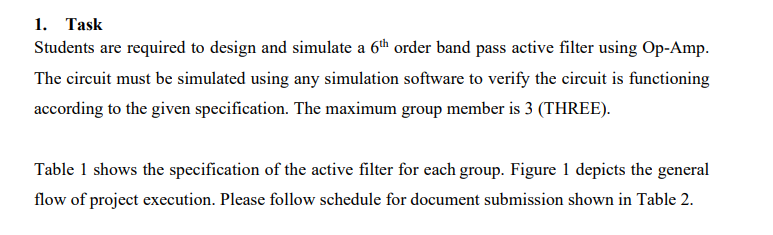

1. Task Students are required to design and simulate a 6th order band pass active filter using Op-Amp. The circuit must be simulated using any simulation software to verify the circuit is functioning according to the given specification. The maximum group member is 3 (THREE). Table 1 shows the specification of the active filter for each group. Figure 1 depicts the general flow of project execution. Please follow schedule for document submission shown in Table 2.
