Consider The Fully Differential Amplifier Shown Below The Transistors M1 M4 Do Not Have Channel Length Modulation I E 1 (29.3 KiB) Viewed 19 times
If you it is correct. I will give thumbs up! Please don't copy
from other places. 1/101 is not the correct answer. Thank you!

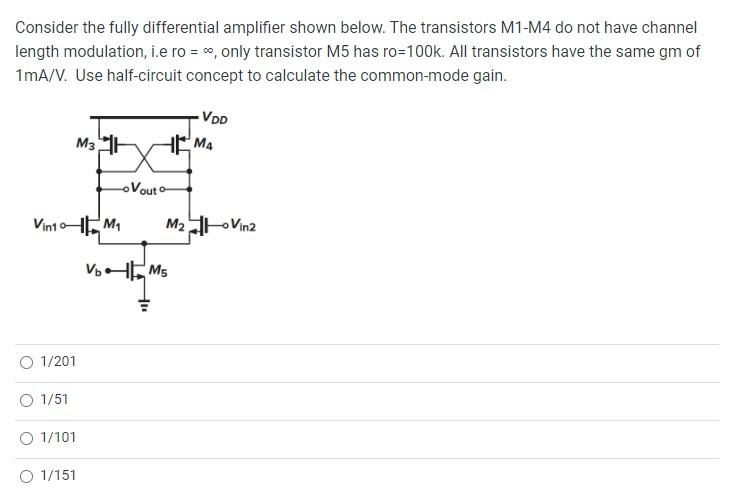

Consider the fully differential amplifier shown below. The transistors M1-M4 do not have channel length modulation, i.e ro = , only transistor M5 has ro=100k. All transistors have the same gm of 1mA/V. Use half-circuit concept to calculate the common-mode gain. VOD M3 MA Vouto VintHEM M2 Vina Voo Ms 1/201 O 1/51 O 1/101 01/151
