5-12. From Fig. P5-12 find: retuit) 50 sls + 4) с 2 "Unit step = 1 Fig. P5-12 (a) The damping factor (b) The natural fre

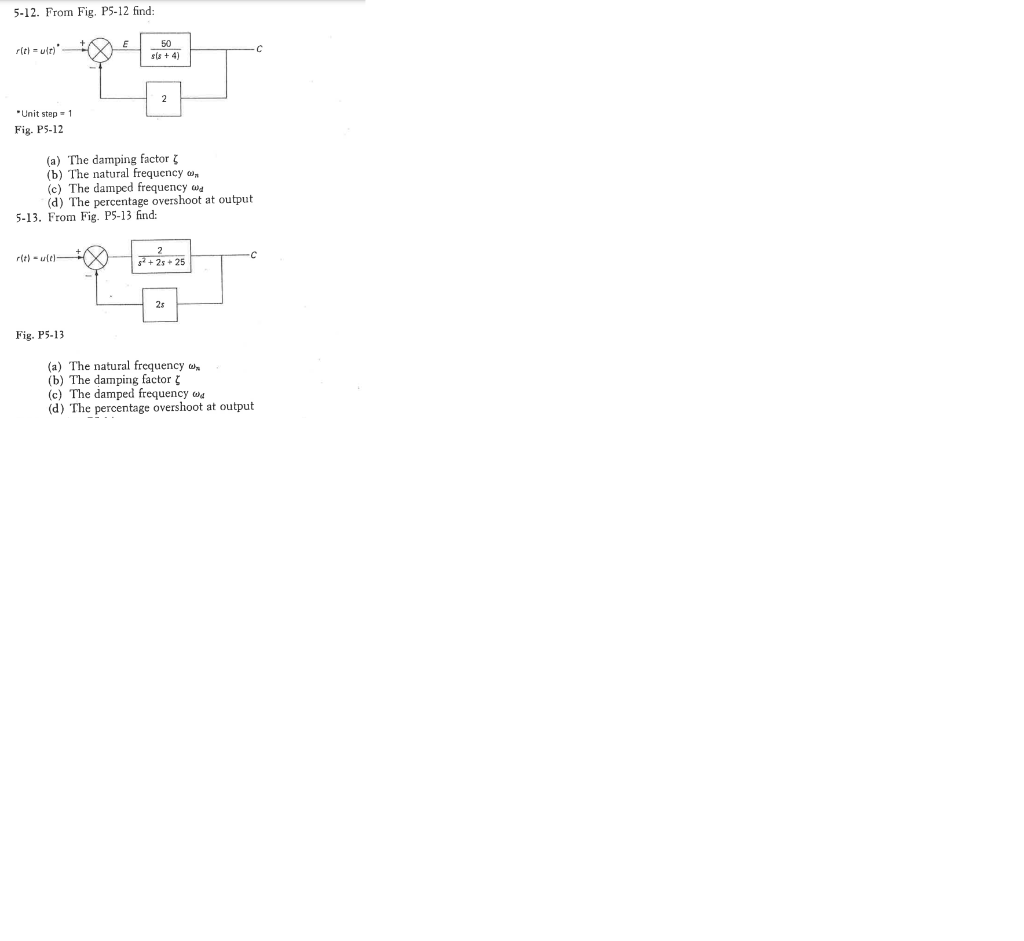

5-12. From Fig. P5-12 find: retuit) 50 sls + 4) с 2 "Unit step = 1 Fig. P5-12 (a) The damping factor (b) The natural frequency an (c) The damped frequency and (d) The percentage overshoot at output 5-13. From Fig. P5-13 find: r(t)- +25+25 25 Fig. P5.13 (a) The natural frequency w (b) The damping factor 5 (c) The damped frequency and (d) The percentage overshoot at output
