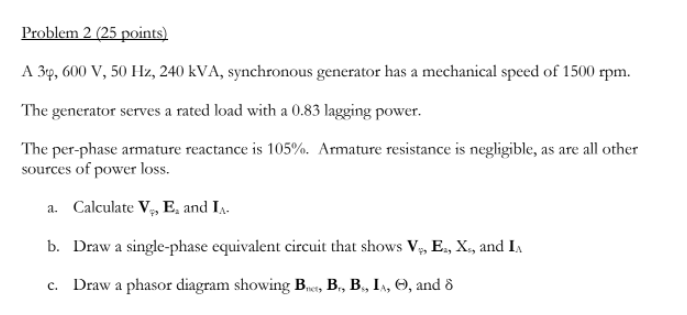

- Problem 2 25 Points A 36 600 V 50 Hz 240 Kva Synchronous Generator Has A Mechanical Speed Of 1500 Rpm The Generato 1 (48.43 KiB) Viewed 16 times
Problem 2 (25 points) A 36,600 V, 50 Hz, 240 kVA, synchronous generator has a mechanical speed of 1500 rpm. The generato
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Problem 2 (25 points) A 36,600 V, 50 Hz, 240 kVA, synchronous generator has a mechanical speed of 1500 rpm. The generato
Problem 2 (25 points) A 36,600 V, 50 Hz, 240 kVA, synchronous generator has a mechanical speed of 1500 rpm. The generator serves a rated load with a 0.83 lagging power. The per-phase armature reactance is 105%. Armature resistance is negligible, as are all other sources of power loss. a. Calculate V., E, and I b. Draw a single-phase equivalent circuit that shows V., E., X., and IA c. Draw a phasor diagram showing Bc, B., B., I, O, and 8
