The logic diagram of a single bit stage of a 4-bit arithmetic circuit, with two selection inputs 50 and 51, is shown bel

Post by answerhappygod »

The Logic Diagram Of A Single Bit Stage Of A 4 Bit Arithmetic Circuit With Two Selection Inputs 50 And 51 Is Shown Bel 1
The Logic Diagram Of A Single Bit Stage Of A 4 Bit Arithmetic Circuit With Two Selection Inputs 50 And 51 Is Shown Bel 1 (97.44 KiB) Viewed 21 times

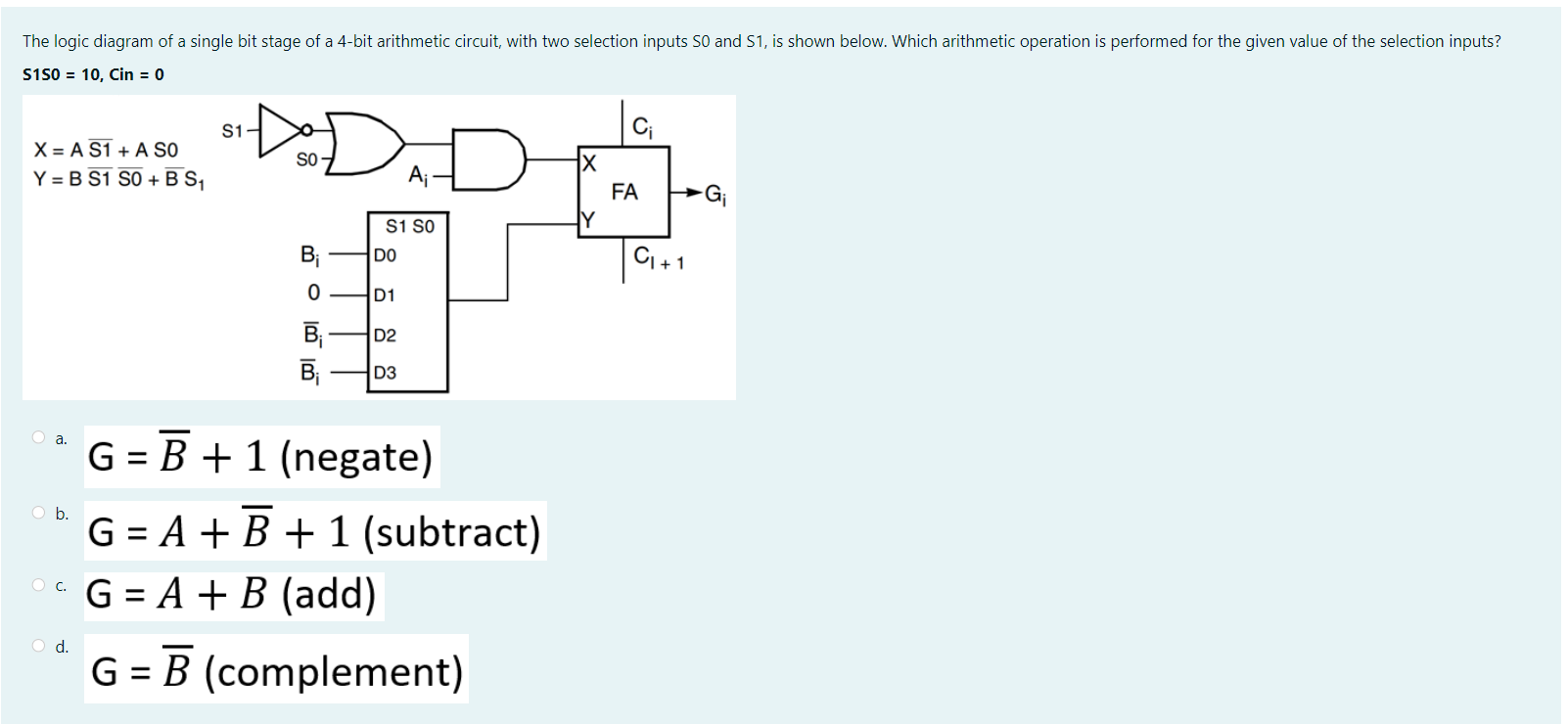

The logic diagram of a single bit stage of a 4-bit arithmetic circuit, with two selection inputs 50 and 51, is shown below. Which arithmetic operation is performed for the given value of the selection inputs? S1S0 = 10, Cin = 0 lo S1 X= A S1 + A SO Y=BS1 SO + BS DA SO x FA G: S1 So DO C1+1 B 0 D1 D2 B; B; D3 a. = b. G=B + 1 (negate) G = A + B + 1 (subtract) G = A + B (add) G=B (complement) O c. = O d.
