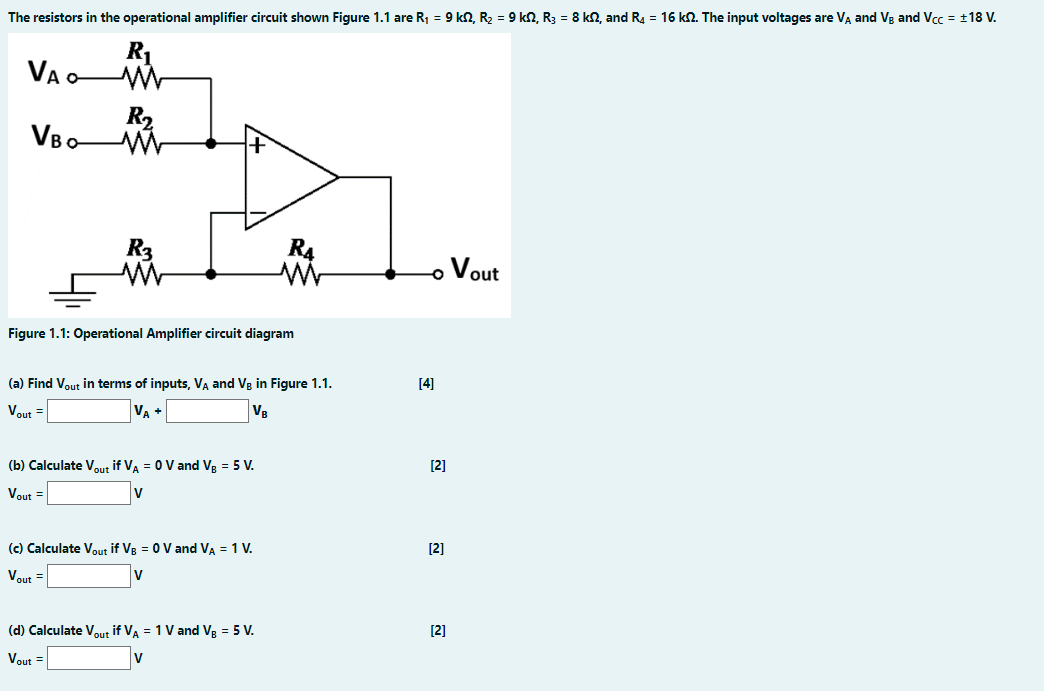

The resistors in the operational amplifier circuit shown Figure 1.1 are R1 = 9 k1, R2 = 9 kN, R3 = 8 k12, and Re = 16 k1

[answerhappygod]

The Resistors In The Operational Amplifier Circuit Shown Figure 1 1 Are R1 9 K1 R2 9 Kn R3 8 K12 And Re 16 K1 1 (49.17 KiB) Viewed 17 times

The resistors in the operational amplifier circuit shown Figure 1.1 are R1 = 9 k1, R2 = 9 kN, R3 = 8 k12, and Re = 16 k12. The input voltages are VA and Vg and Vcc = +18 V. R1 Vao M VBO R3 M W Vout Figure 1.1: Operational Amplifier circuit diagram [4] (a) Find Vout in terms of inputs, VA and Vg in Figure 1.1. Vout = VA + VB (b) Calculate Vout if VA = 0 V and Vg = 5 V. [2] Vout = [2] (c) Calculate Vout if Vg = 0 V and VA = 1 V. Vout = (d) Calculate Vout if VA = 1 V and Vg = 5 V. [2] Vout = V
