8. (5 points) Find the power of each circuit element. You must show the voltage across (with polarity) and current throu

Post by answerhappygod »

8 5 Points Find The Power Of Each Circuit Element You Must Show The Voltage Across With Polarity And Current Throu 1
8 5 Points Find The Power Of Each Circuit Element You Must Show The Voltage Across With Polarity And Current Throu 1 (84.89 KiB) Viewed 19 times

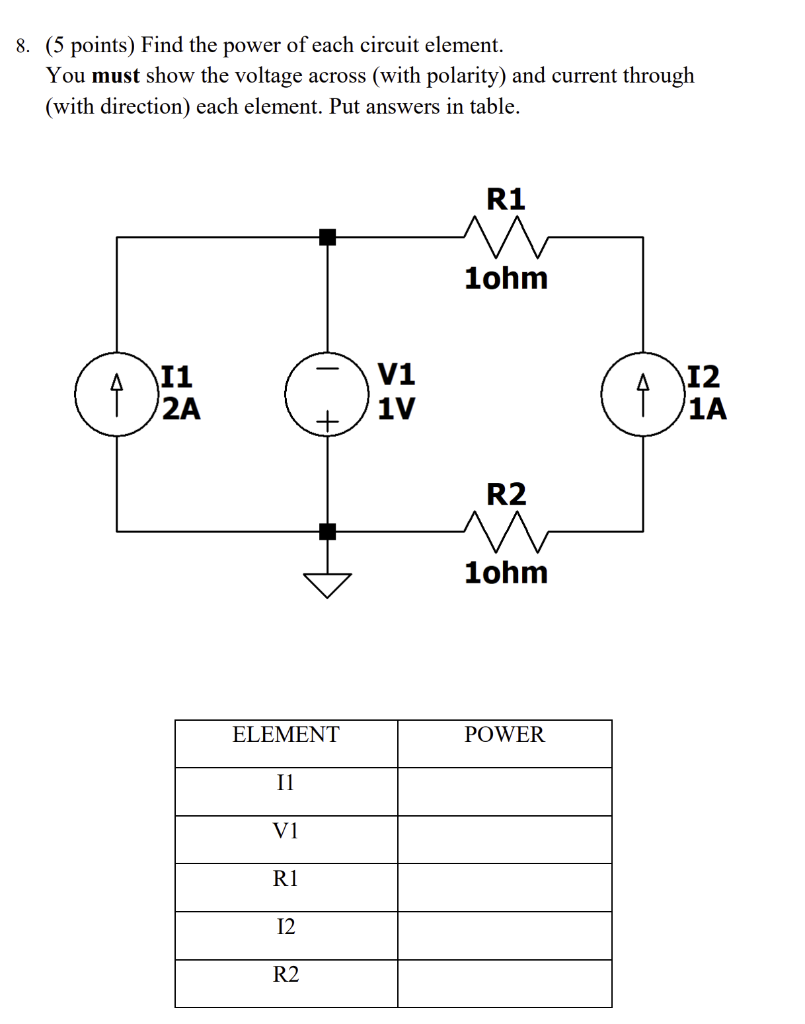

8. (5 points) Find the power of each circuit element. You must show the voltage across (with polarity) and current through (with direction) each element. Put answers in table. R1 M 1ohm 11 2A V1 1V 4 I2 1A + R2 1ohm ELEMENT POWER I1 V1 R1 12 R2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
