m a) The outer radius of the inner conductor and the inner radius of the outer conductor of a copper coaxial cable is 5

Post by answerhappygod »

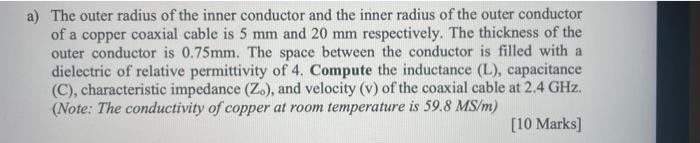

M A The Outer Radius Of The Inner Conductor And The Inner Radius Of The Outer Conductor Of A Copper Coaxial Cable Is 5 1
M A The Outer Radius Of The Inner Conductor And The Inner Radius Of The Outer Conductor Of A Copper Coaxial Cable Is 5 1 (20.44 KiB) Viewed 20 times
m a) The outer radius of the inner conductor and the inner radius of the outer conductor of a copper coaxial cable is 5 mm and 20 mm respectively. The thickness of the outer conductor is 0.75mm. The space between the conductor is filled with a dielectric of relative permittivity of 4. Compute the inductance (L), capacitance (C), characteristic impedance (Z.), and velocity (V) of the coaxial cable at 2.4 GHz. (Note: The conductivity of copper at room temperature is 59.8 MS/m) [10 Marks]
