Three loads are connected in parallel to a 120/0° V rms source. Load 1 absorbs 60 KVAR at pf = 0.85 lagging, load 2 abso

Post by answerhappygod »

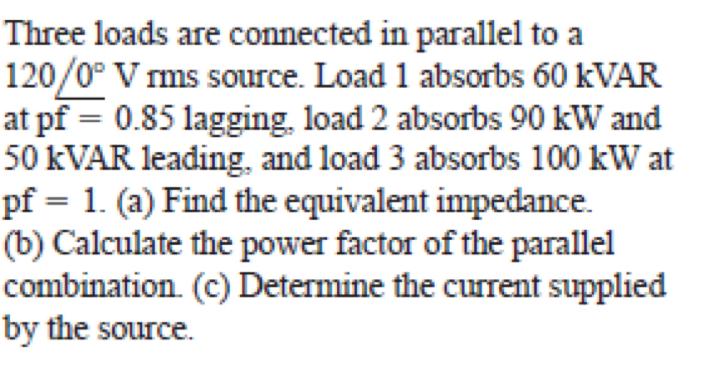

Three Loads Are Connected In Parallel To A 120 0 V Rms Source Load 1 Absorbs 60 Kvar At Pf 0 85 Lagging Load 2 Abso 1
Three Loads Are Connected In Parallel To A 120 0 V Rms Source Load 1 Absorbs 60 Kvar At Pf 0 85 Lagging Load 2 Abso 1 (48.7 KiB) Viewed 21 times
Three loads are connected in parallel to a 120/0° V rms source. Load 1 absorbs 60 KVAR at pf = 0.85 lagging, load 2 absorbs 90 kW and 50 KVAR leading, and load 3 absorbs 100 kW at pf = 1. (a) Find the equivalent impedance. (b) Calculate the power factor of the parallel combination (C) Determine the current supplied by the source
