detail Sol???

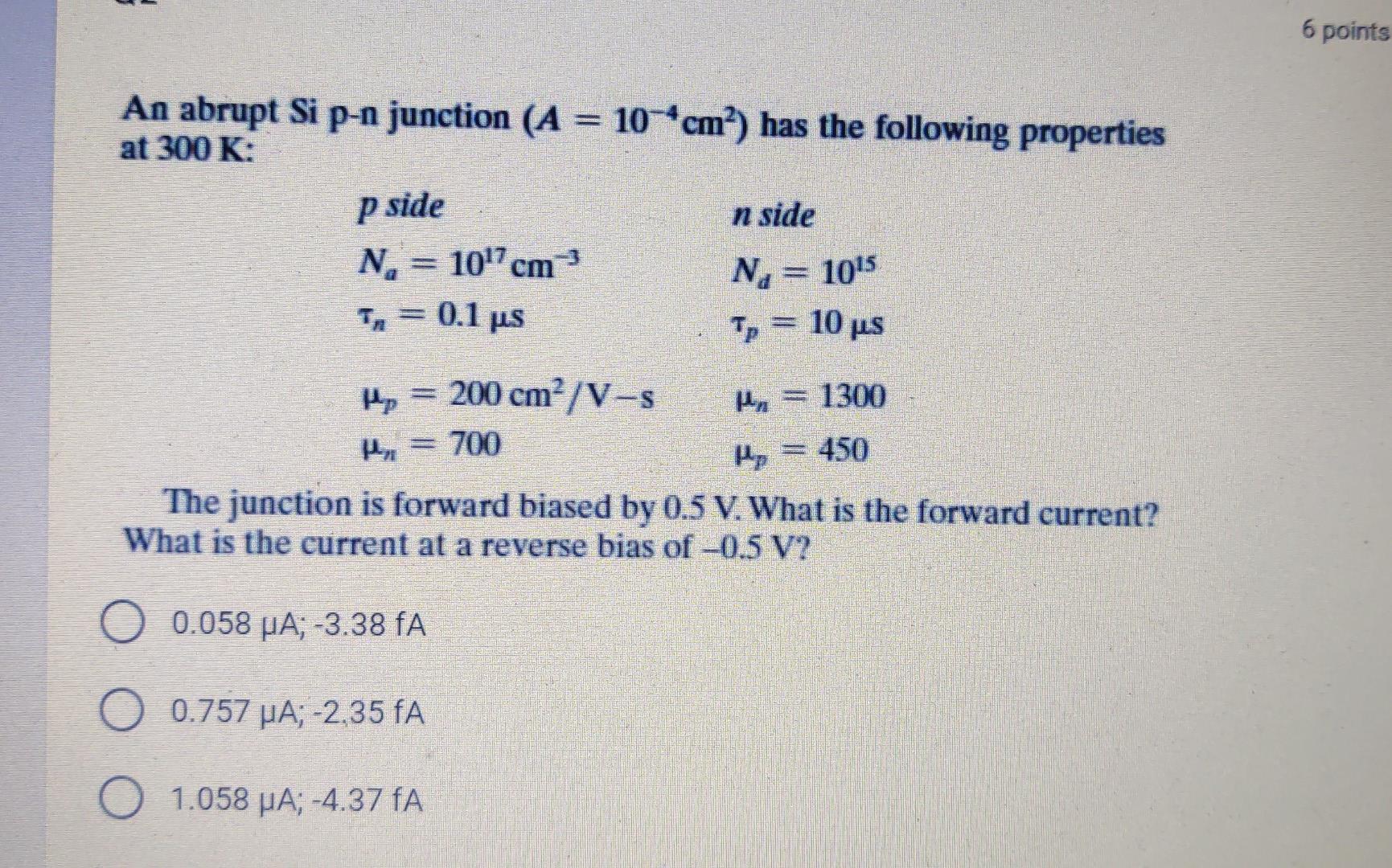

| 6 points An abrupt Si p-n junction (A = 10 cm?) has the following properties at 300 K: p side n side N. 107 cm N, = 1015 TR = 0.1 us To = 10 pcs u, = 200 cm/V-s = H, = 1300 H 700 Hp = 450 The junction is forward biased by 0.5 V. What is the forward current? What is the current at a reverse bias of -0.5 V? 0.058 PA; -3.38 fA O 0.757 MA; -2,35 fA 1.058 PA; -4.37 fA
