(3) Consider the PMOS common-gate transistor given in Figure 3. The transistor parameters are as follows: VTP=-1 V Kr=0.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(3) Consider the PMOS common-gate transistor given in Figure 3. The transistor parameters are as follows: VTP=-1 V Kr=0.

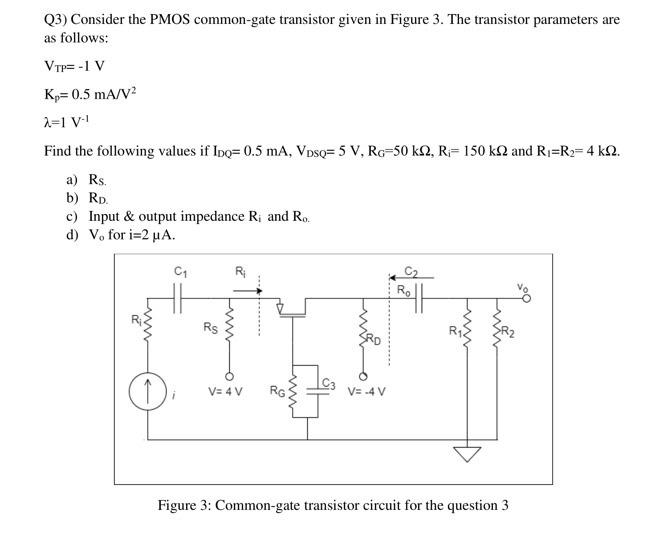

(3) Consider the PMOS common-gate transistor given in Figure 3. The transistor parameters are as follows: VTP=-1 V Kr=0.5 mA/V2 2=1 V-1 Find the following values if Ipo= 0.5 mA, Vpsợ= 5 V, Rg=50 k-2, Ri= 150 kN and Ri=R>= 4 k12. a) Rs. b) Rp. c) Input & output impedance R and R.. d) V. for i=2 uA. C1 R C2 RS quan w b V=4V RG V=-4 V Figure 3: Common-gate transistor circuit for the question 3
