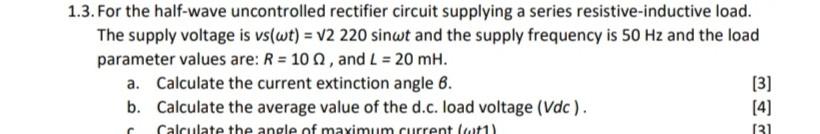

1.3. For the half-wave uncontrolled rectifier circuit supplying a series resistive-inductive load. The supply voltage is vs(wt) = V2 220 sinwt and the supply frequency is 50 Hz and the load parameter values are: R = 10 , and L = 20 mH. a. Calculate the current extinction angle 6. [3] b. Calculate the average value of the d.c. load voltage (Vdc). [4] Calculate the angle of maximum current twt1) 131
