3. A parallel-plate capacitor of width w, length L. and separation dis partially filled with a dielectric medium of diel

Post by answerhappygod »

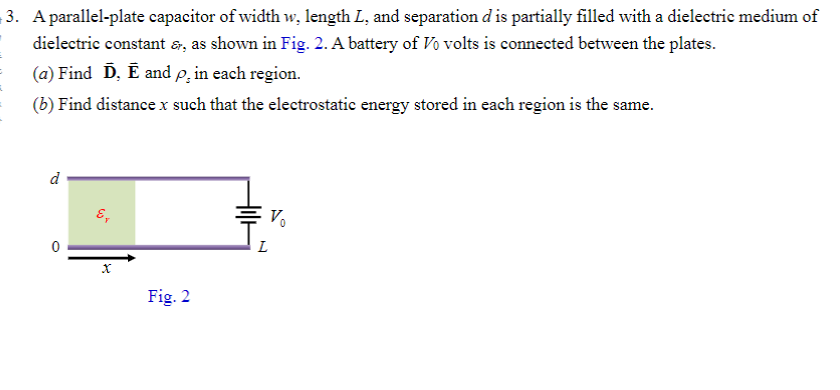

3 A Parallel Plate Capacitor Of Width W Length L And Separation Dis Partially Filled With A Dielectric Medium Of Diel 1
3 A Parallel Plate Capacitor Of Width W Length L And Separation Dis Partially Filled With A Dielectric Medium Of Diel 1 (36.99 KiB) Viewed 38 times
3. A parallel-plate capacitor of width w, length L. and separation dis partially filled with a dielectric medium of dielectric constant &, as shown in Fig. 2. A battery of Vo volts is connected between the plates. (a) Find D, Ē and p, in each region. (6) Find distance x such that the electrostatic energy stored in each region is the same. d & & V. L X Fig. 2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
