ASSIGNMENT 2: Fragmentation 30.0.0.7 40.0.0.7 30.0.0.0/15 MTU=1700 40.0.0.0/12 MTU=900 Router 1 50.1,0.8 40.0.0.8 C1 Rou

[answerhappygod]

Assignment 2 Fragmentation 30 0 0 7 40 0 0 7 30 0 0 0 15 Mtu 1700 40 0 0 0 12 Mtu 900 Router 1 50 1 0 8 40 0 0 8 C1 Rou 1 (38.09 KiB) Viewed 23 times

i want to answer this question by showing all the steps
then put the answer in a table like this :

Assignment 2 Fragmentation 30 0 0 7 40 0 0 7 30 0 0 0 15 Mtu 1700 40 0 0 0 12 Mtu 900 Router 1 50 1 0 8 40 0 0 8 C1 Rou 2 (15.25 KiB) Viewed 23 times

The IP sending and destination stay the same in all .
please answer it carefully
i posted two times and there's a mistake in the first table we must use 1489 (1500-20) not 660 and 680 please answer me carefully
b-

Assignment 2 Fragmentation 30 0 0 7 40 0 0 7 30 0 0 0 15 Mtu 1700 40 0 0 0 12 Mtu 900 Router 1 50 1 0 8 40 0 0 8 C1 Rou 3 (42.21 KiB) Viewed 23 times

please answer me these two parts in less than 2 hours please

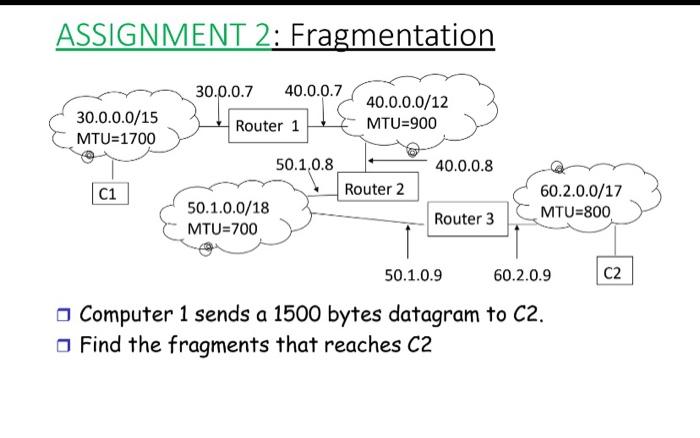

ASSIGNMENT 2: Fragmentation 30.0.0.7 40.0.0.7 30.0.0.0/15 MTU=1700 40.0.0.0/12 MTU=900 Router 1 50.1,0.8 40.0.0.8 C1 Router 2 50.1.0.0/18 MTU=700 60.2.0.0/17 MTU=800 Router 3 50.1.0.9 60.2.0.9 C2 Computer 1 sends a 1500 bytes datagram to C2. O Find the fragments that reaches C2

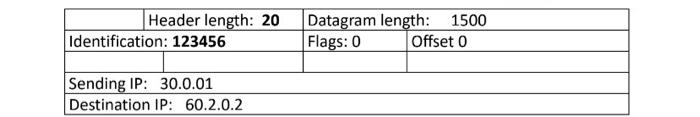

Header length: 20 Identification: 123456 Datagram length: 1500 Flags: 0 Offset 0 Sending IP: 30.0.01 Destination IP: 60.2.0.2

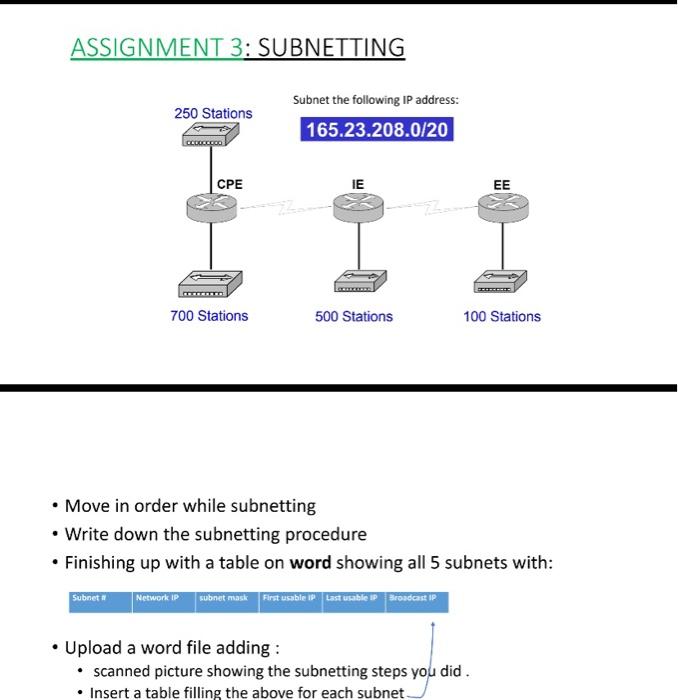

ASSIGNMENT 3: SUBNETTING 250 Stations Subnet the following IP address: 165.23.208.0/20 CPE IE EE LEGELEGE 700 Stations 500 Stations 100 Stations • Move in order while subnetting • Write down the subnetting procedure • Finishing up with a table on word showing all 5 subnets with: Subnet Network IP subnet mask First usable IP Last usable IP Broadcast IP • Upload a word file adding: • scanned picture showing the subnetting steps you did. • Insert a table filling the above for each subnet
