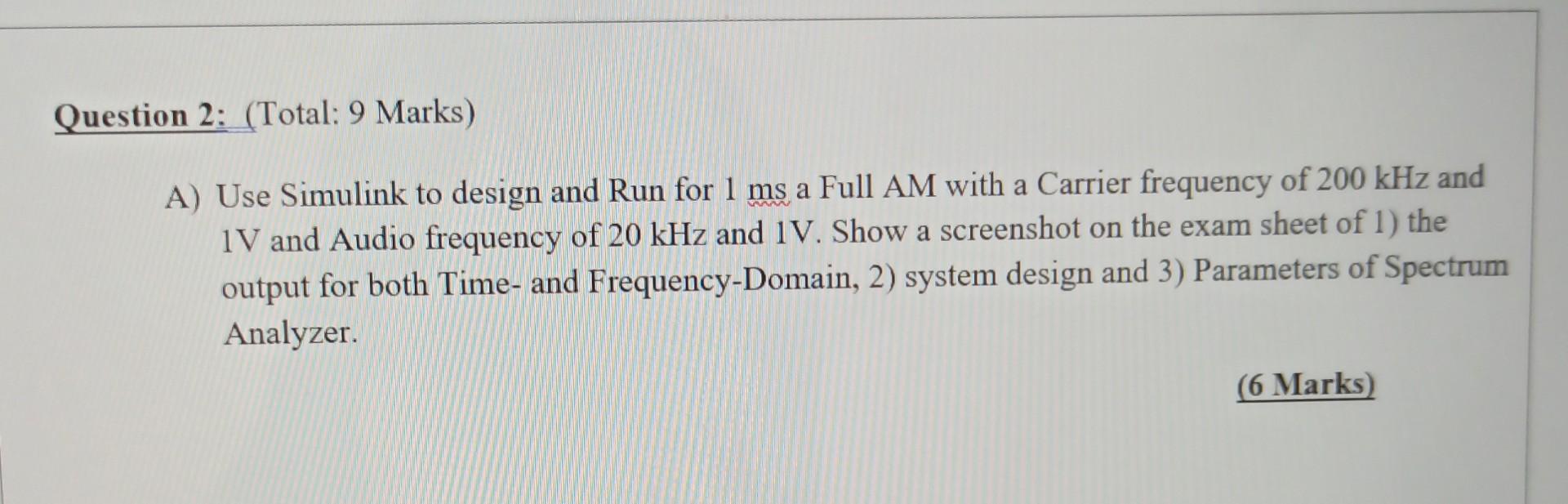

Question 2: (Total: 9 Marks) A) Use Simulink to design and Run for 1 ms a Full AM with a Carrier frequency of 200 kHz and IV and Audio frequency of 20 kHz and IV. Show a screenshot on the exam sheet of 1) the output for both Time- and Frequency-Domain, 2) system design and 3) Parameters of Spectrum Analyzer (6 Marks)

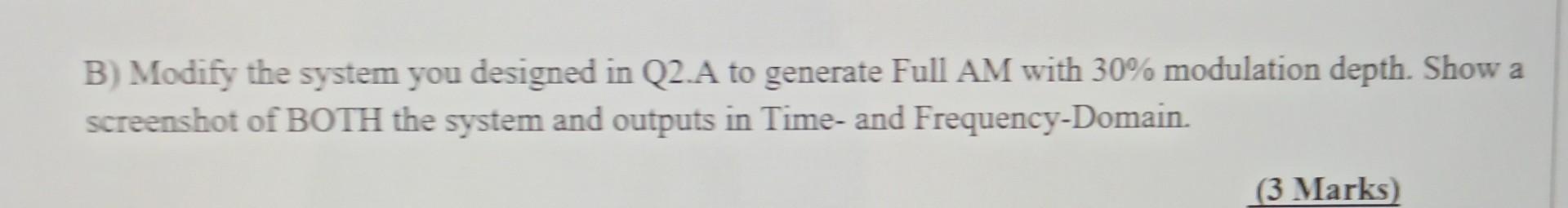

B) Modify the system you designed in Q2.A to generate Full AM with 30% modulation depth. Show a screenshot of BOTH the system and outputs in Time- and Frequency-Domain. (3 Marks)
