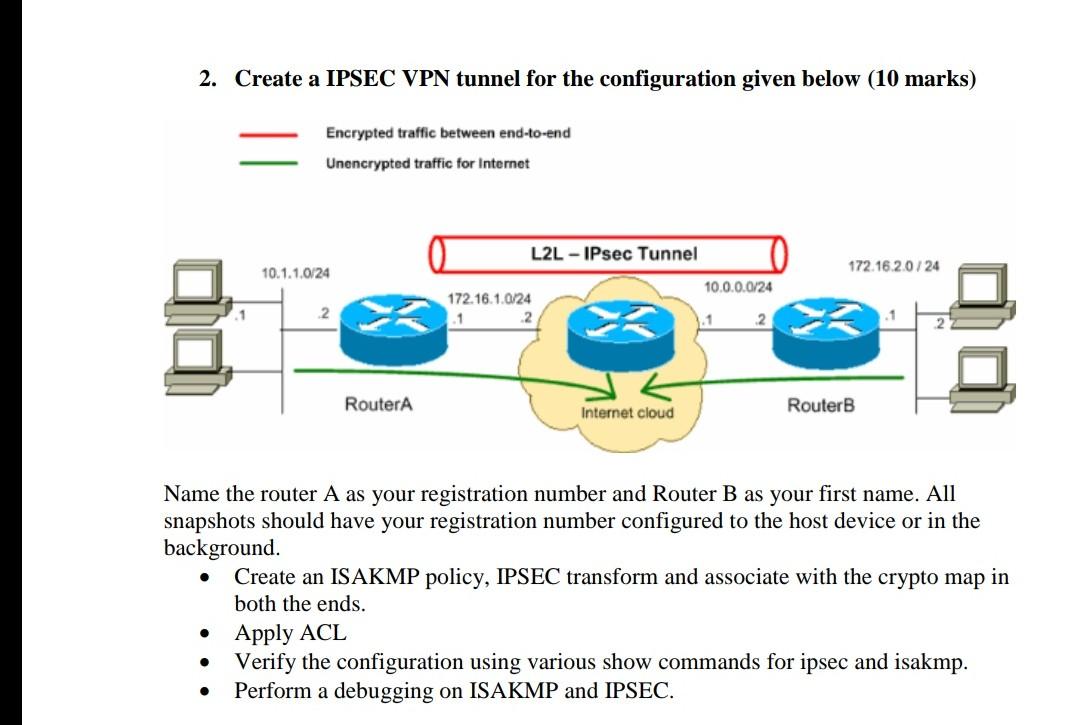

- 2 Create A Ipsec Vpn Tunnel For The Configuration Given Below 10 Marks Encrypted Traffic Between End To End Unencrypt 1 (79.12 KiB) Viewed 19 times
2. Create a IPSEC VPN tunnel for the configuration given below (10 marks) Encrypted traffic between end-to-end Unencrypted traffic for Internet L2L-IPsec Tunnel 10.1.1.0/24 172.16.2.0/24 10.0.0.0/24 172.16.1.0/24 1 2 1 2 .1 2 RouterA Internet cloud RouterB Name the router A as your registration number and Router B as your first name. All snapshots should have your registration number configured to the host device or in the background. Create an ISAKMP policy, IPSEC transform and associate with the crypto map in both the ends. Apply ACL Verify the configuration using various show commands for ipsec and isakmp. Perform a debugging on ISAKMP and IPSEC. . .
