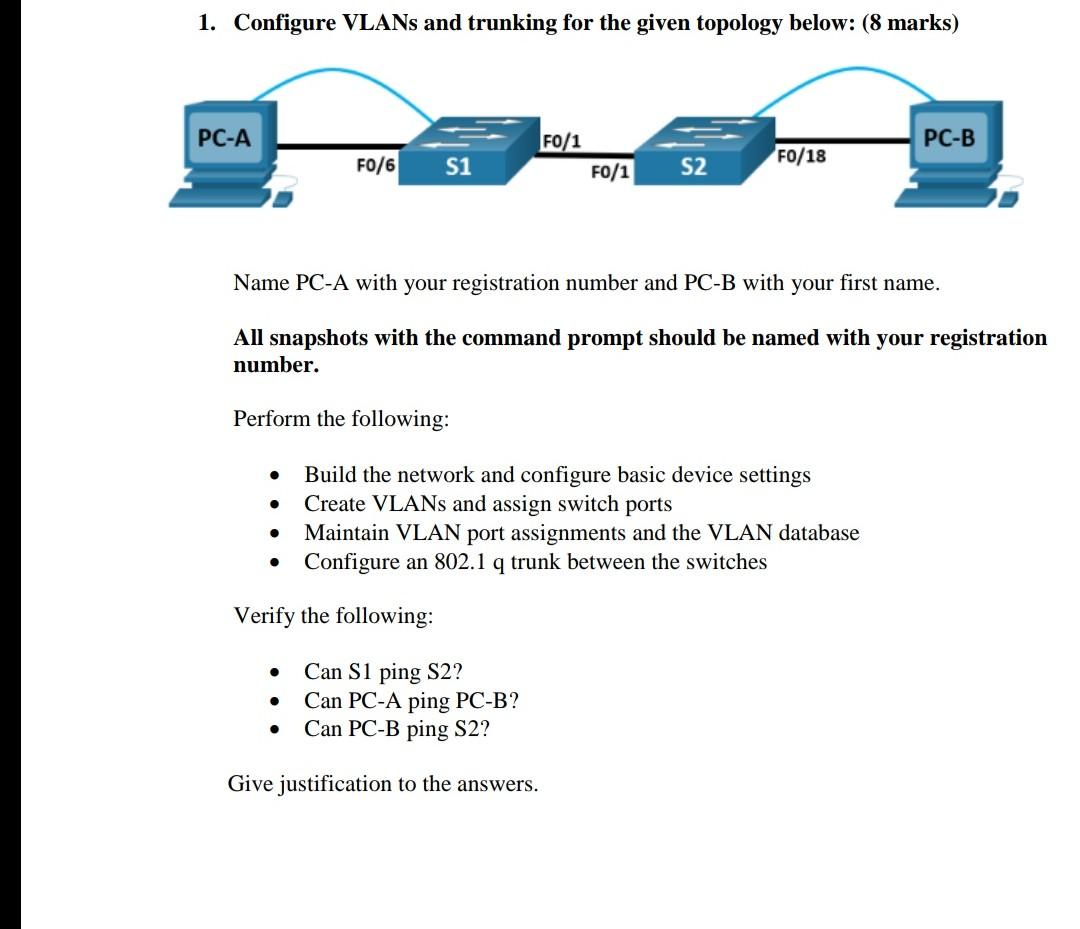

1. Configure VLANs and trunking for the given topology below: (8 marks) PC-A PC-B FO/6 S1 FO/1 F0/1 S2 FO/18 Name PC-A w

[answerhappygod]

1 Configure Vlans And Trunking For The Given Topology Below 8 Marks Pc A Pc B Fo 6 S1 Fo 1 F0 1 S2 Fo 18 Name Pc A W 1 (82.2 KiB) Viewed 20 times

pls use cisco packet tracer i need scrsht with commands
1. Configure VLANs and trunking for the given topology below: (8 marks) PC-A PC-B FO/6 S1 FO/1 F0/1 S2 FO/18 Name PC-A with your registration number and PC-B with your first name. All snapshots with the command prompt should be named with your registration number. Perform the following: . Build the network and configure basic device settings Create VLANs and assign switch ports Maintain VLAN port assignments and the VLAN database Configure an 802.1 q trunk between the switches . . Verify the following: . Can S1 ping S2? Can PC-A ping PC-B? Can PC-B ping S2? . Give justification to the answers.
