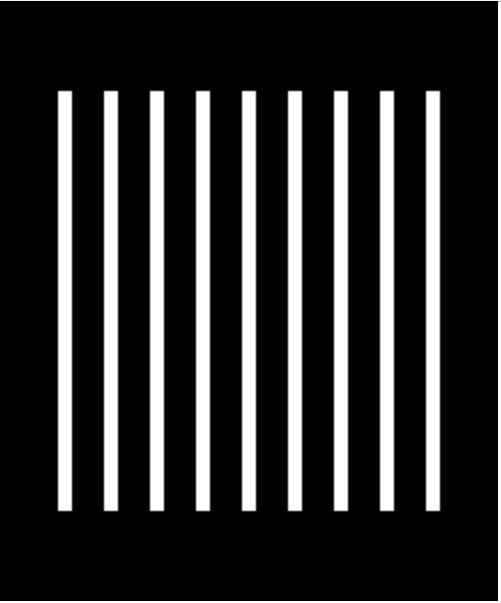

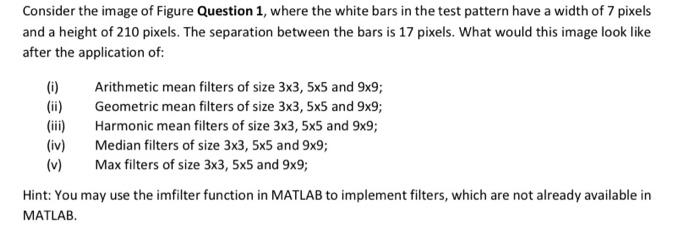

Consider the image of Figure Question 1, where the white bars in the test pattern have a width of 7 pixels and a height of 210 pixels. The separation between the bars is 17 pixels. What would this image look like after the application of: (i) Arithmetic mean filters of size 3x3, 5x5 and 9x9; Geometric mean filters of size 3x3, 5x5 and 9x9; (iii) Harmonic mean filters of size 3x3, 5x5 and 9x9; (iv) Median filters of size 3x3, 5x5 and 9x9; (v) Max filters of size 3x3, 5x5 and 9x9; Hint: You may use the imfilter function in MATLAB to implement filters, which are not already available in MATLAB.
