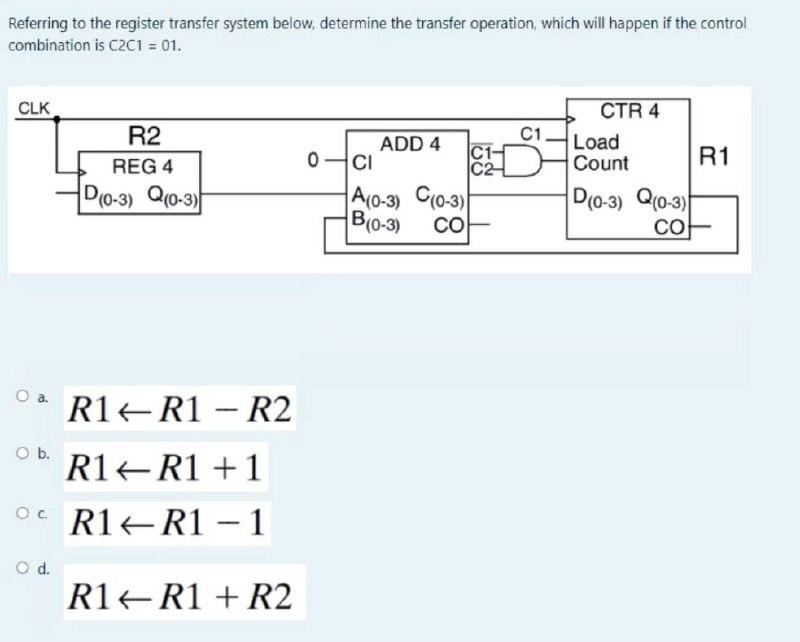

Referring to the register transfer system below, determine the transfer operation, which will happen if the control combination is C2C1 = 01. CLK C1 R2 REG 4 D(0-3) Q(0-3) 0 CTR 4 Load Count D(0-3) Q(0-3) CO ADD 4 C1 CI C2 A(0-3) (0-3) CO R1 B0-3) O a. ob. R1+R1 - R2 R1R1 +1 oc R1 R1 - 1 O d. R14 R1 + R2
