The shown truss is supported by hinges at nodes 1, 2, and 4, and the truss members are pin-connected at node 3. EA is co

Post by answerhappygod »

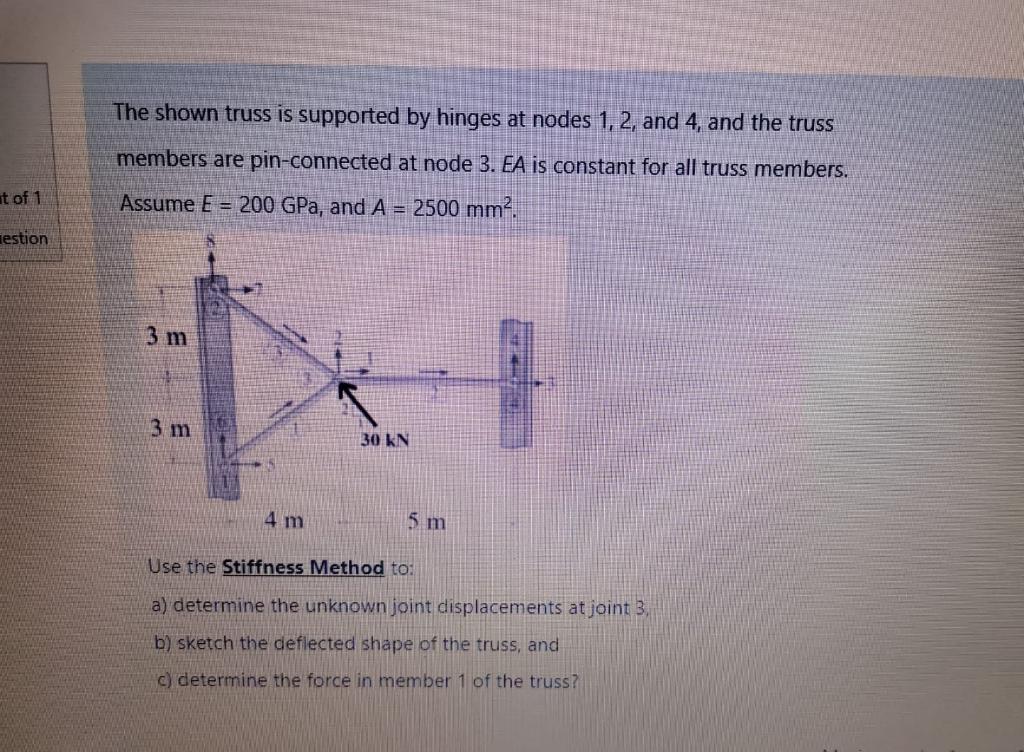

The Shown Truss Is Supported By Hinges At Nodes 1 2 And 4 And The Truss Members Are Pin Connected At Node 3 Ea Is Co 1
The Shown Truss Is Supported By Hinges At Nodes 1 2 And 4 And The Truss Members Are Pin Connected At Node 3 Ea Is Co 1 (152.47 KiB) Viewed 34 times
The shown truss is supported by hinges at nodes 1, 2, and 4, and the truss members are pin-connected at node 3. EA is constant for all truss members. Assume E = 200 GPa, and A = 2500 mm2. it of 1 estion 3 m 3 m 30 KN 4 m 5 m Use the Stiffness Method to: a) determine the unknown joint displacements at joint 3, b) sketch the deflected shape of the truss, and c) determine the force in member 1 of the truss?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
