c00 START WITH VECTOR A AND WORK ALPHABETICALLY 60 1 FIND THE RESULTANT OF THE FORCES BY THE PARALLELOGRAM METHOD. ADD A

[answerhappygod]

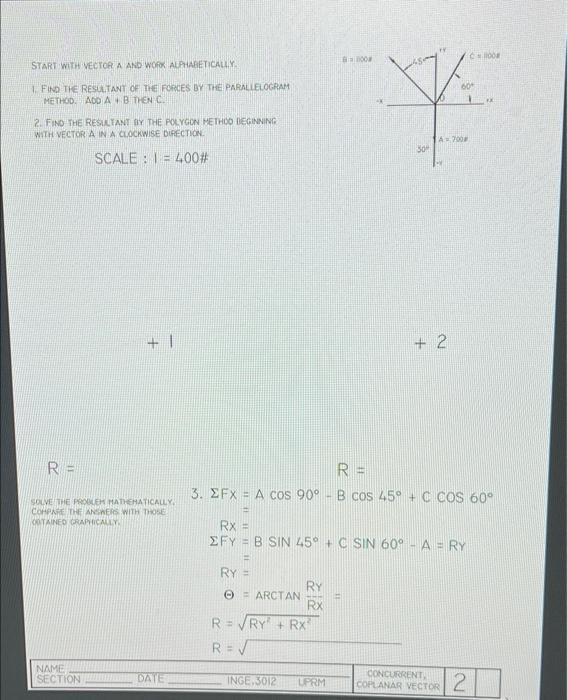

C00 Start With Vector A And Work Alphabetically 60 1 Find The Resultant Of The Forces By The Parallelogram Method Add A 1 (64.65 KiB) Viewed 22 times

c00 START WITH VECTOR A AND WORK ALPHABETICALLY 60 1 FIND THE RESULTANT OF THE FORCES BY THE PARALLELOGRAM METHOD. ADD AB THEN C 2. FIND THE RESULTANT BY THE POLYGON METHOO DEGINNING WITH VECTOR AIN A CLOCKWISE DIRECTION A-7000 30 SCALE : E 400# + 1 + 2 R = R= 3. EFX = A COS 90° - B cos 45º + GCOS 60° SOLVE THE PROBLER MATHEMATICALLY CHP THE ANSWERS WITH THOSE COTAINED GRAPHICALLY RX = FY = B SIN 45° + C SIN 609 - A = RY RY RY ARCTAN Rx R = RYP + RX R = √ NAME SECTION DATE INGE 3012 UPRM COPLANAR VECTOR 2
