Problem-2 Refer to Figure, and the following values to determine the at-rest lateral earth force per unit length of the

[answerhappygod]

Problem 2 Refer To Figure And The Following Values To Determine The At Rest Lateral Earth Force Per Unit Length Of The 1 (33.5 KiB) Viewed 27 times

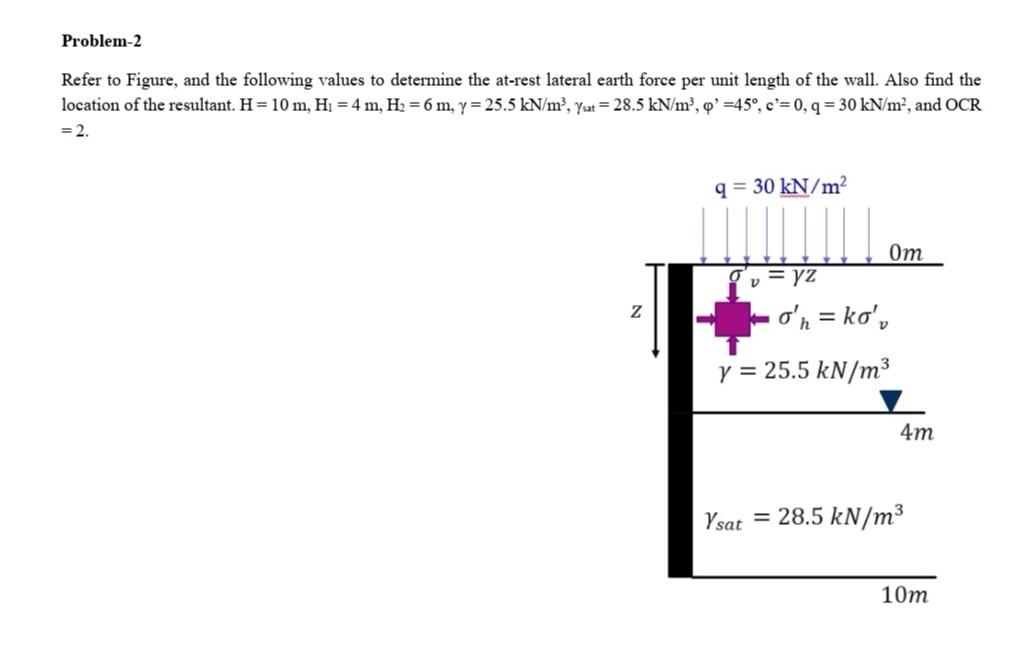

Problem-2 Refer to Figure, and the following values to determine the at-rest lateral earth force per unit length of the wall. Also find the location of the resultant. H = 10 m, H = 4 m, H2=6 m, y = 25.5 kN/m, Ysat = 28.5 kN/m², q' =45°, c'=0, q = 30 kN/mº, and OCR = 2. q = 30 kN/m От v=YZ o'n = ko', z y = 25.5 kN/m3 4m Ysat = 28.5 kN/m3 10m
