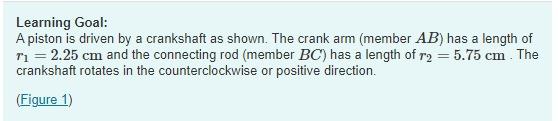

Learning Goal: A piston is driven by a crankshaft as shown. The crank arm (member AB) has a length of ni = 2.25 cm and the connecting rod (member BC) has a length of t2 = 5.75 cm. The crankshaft rotates in the counterclockwise or positive direction. (Figure 1)
VC x 002 001 В B
Part D - Rotational Speed of the Crankshaft The velocity of the piston is vc = 31.0 cm/s j the instant when 6 = 37.0° and o=18.2Find the rotational speed of the crankshaft (member AB) at this instant. The crankshaft is rotating in the counterclockwise or positive direction. (Figure 2) Express your answer to three significant figures in revolutions per minute. View Available Hint(s) Hint 1. How to approach the problem Hint 2. Velocity of B in terms of C Hint 3. Velocity of A in terms of B IVO AXO 11 vec ? Wi= rpm Submit Request Answer
