Figure (1) shows the framing plan of the repeated floor of a library reading rooms. The floor slab is 5-inch thick reinf

[answerhappygod]

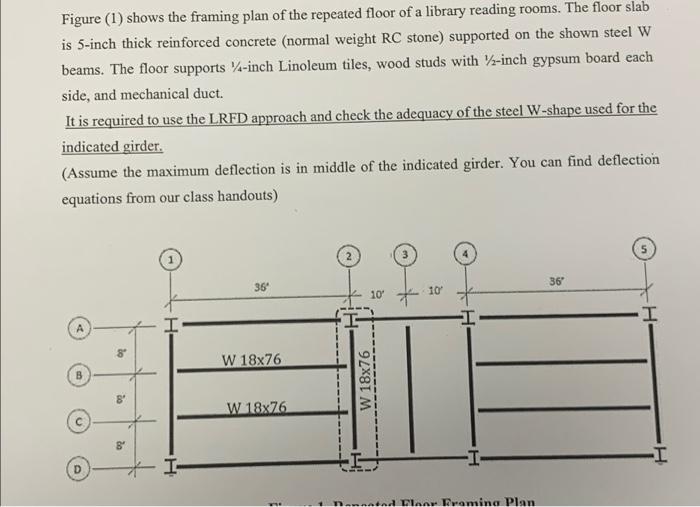

Figure 1 Shows The Framing Plan Of The Repeated Floor Of A Library Reading Rooms The Floor Slab Is 5 Inch Thick Reinf 1 (42.6 KiB) Viewed 22 times

Figure (1) shows the framing plan of the repeated floor of a library reading rooms. The floor slab is 5-inch thick reinforced concrete (normal weight RC stone) supported on the shown steel W beams. The floor supports -inch Linoleum tiles, wood studs with V-inch gypsum board each side, and mechanical duct. It is required to use the LRFD approach and check the adequacy of the steel W-shape used for the indicated girder. (Assume the maximum deflection is in middle of the indicated girder. You can find deflection equations from our class handouts) 36' 36 10 10 I I A I 8 W 18x76 W 18x76 8 W 18x76 za I I D I nonnated Claw Tramina Plan
