3) A column in a two-story building is fabricated from square structural tubing having the cross sectional dimensions sh

[answerhappygod]

3 A Column In A Two Story Building Is Fabricated From Square Structural Tubing Having The Cross Sectional Dimensions Sh 1 (44.01 KiB) Viewed 40 times

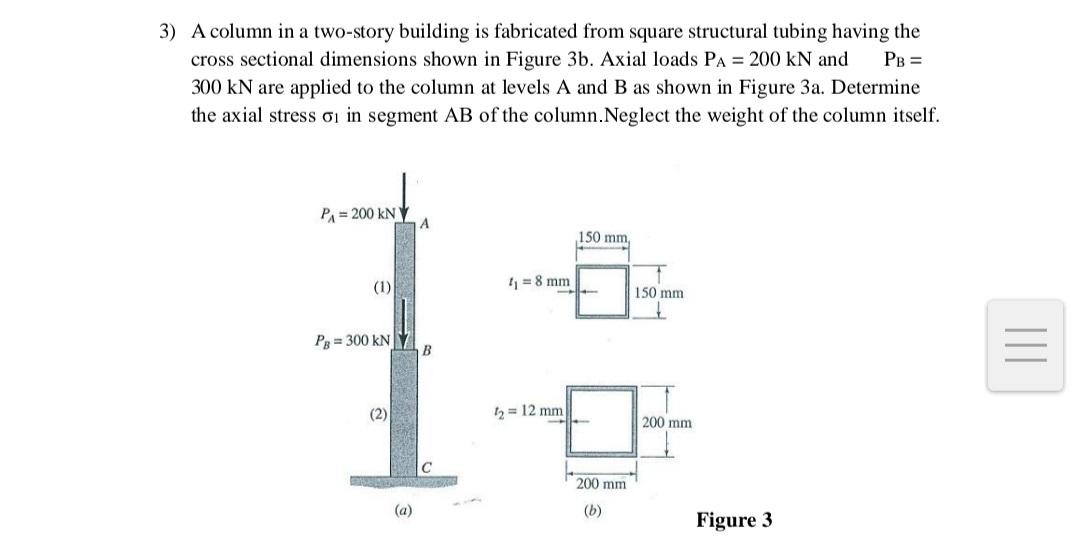

3) A column in a two-story building is fabricated from square structural tubing having the cross sectional dimensions shown in Figure 3b. Axial loads PA = 200 kN and PB = 300 kN are applied to the column at levels A and B as shown in Figure 3a. Determine the axial stress or in segment AB of the column.Neglect the weight of the column itself. P = 200 KN 150 mm 1 = 8 mm 150 mm 1 Pg= 300 KN = (2) 12 = 12 mm 200 mm 200 mm (a) (b) Figure 3
