Q3. For the piping system shown, all pipes are concrete with a roughness of 0.1 mm. Neglecting minor losses, compute the

Post by answerhappygod »

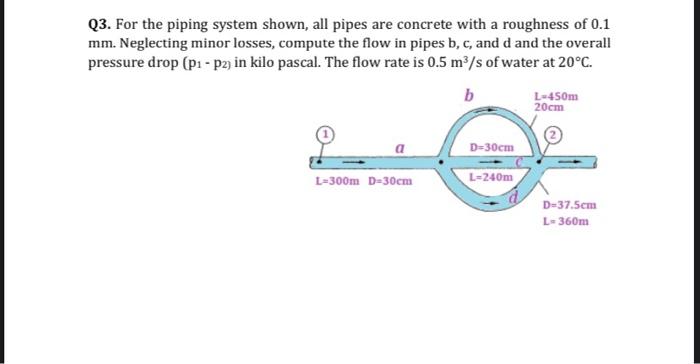

Q3 For The Piping System Shown All Pipes Are Concrete With A Roughness Of 0 1 Mm Neglecting Minor Losses Compute The 1
Q3 For The Piping System Shown All Pipes Are Concrete With A Roughness Of 0 1 Mm Neglecting Minor Losses Compute The 1 (20.31 KiB) Viewed 52 times
Q3. For the piping system shown, all pipes are concrete with a roughness of 0.1 mm. Neglecting minor losses, compute the flow in pipes b, c, and d and the overall pressure drop (p2 - p2) in kilo pascal. The flow rate is 0.5 m/s of water at 20°C. b L-450m 20cm D-30cm L=240m L=300m D=30cm D-37.5cm L-360m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
