Problem #6, Design the radius and stationing of the PC and PT (5 points) A horizontal curve is being designed for a new

Post by answerhappygod »

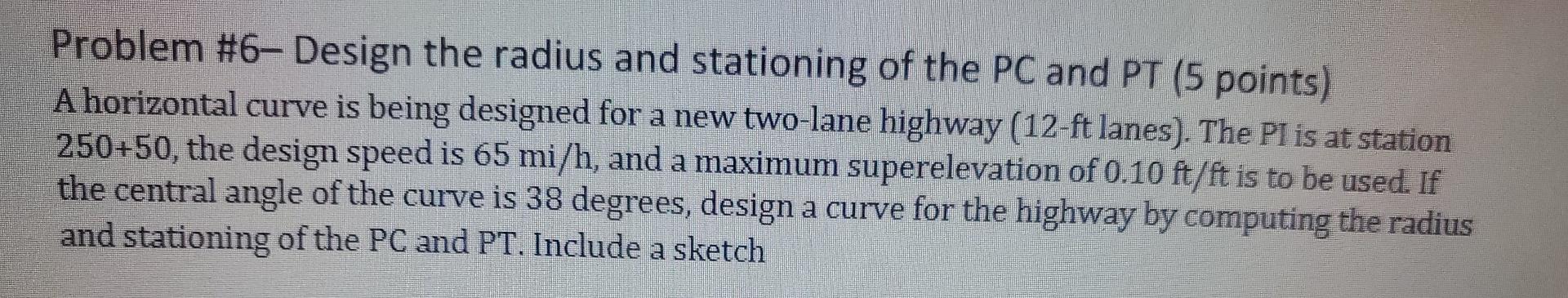

Problem 6 Design The Radius And Stationing Of The Pc And Pt 5 Points A Horizontal Curve Is Being Designed For A New 1
Problem 6 Design The Radius And Stationing Of The Pc And Pt 5 Points A Horizontal Curve Is Being Designed For A New 1 (186.25 KiB) Viewed 23 times
Problem #6, Design the radius and stationing of the PC and PT (5 points) A horizontal curve is being designed for a new two-lane highway (12-ft lanes). The PI is at station 250+50, the design speed is 65 mi/h, and a maximum superelevation of 0.10 ft/ft is to be used. If the central angle of the curve is 38 degrees, design a curve for the highway by computing the radius and stationing of the PC and PT. Include a sketch
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
