Determine the forces in each member.

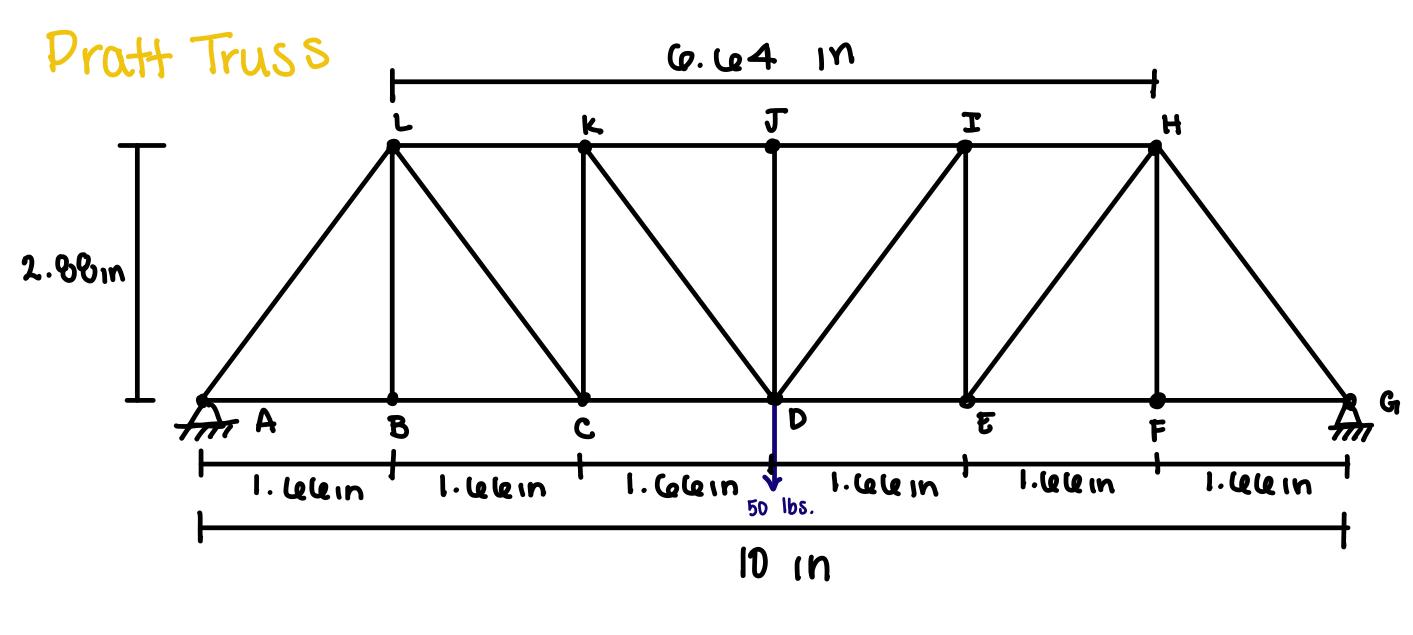

I recently built a pratt truss model and would like to know what
the forces in each member are according to these measurements.
There are two pin connections on joint A and joint G, and a 50 lb
force acting on joint D.
Determine The Forces In Each Member I Recently Built A Pratt Truss Model And Would Like To Know What The Forces In Each 1 (71.84 KiB) Viewed 42 times
Pratt Truss 6.64 in J H 2.88in MA B E F 1. Llein 1.klein 1.6elein 1.lelein 1.6llin uinnit 50 lbs. H ID in
