4-)Mr and Nr, which the section given in the figure can bear on the basis of the following deformation states get the va

[answerhappygod]

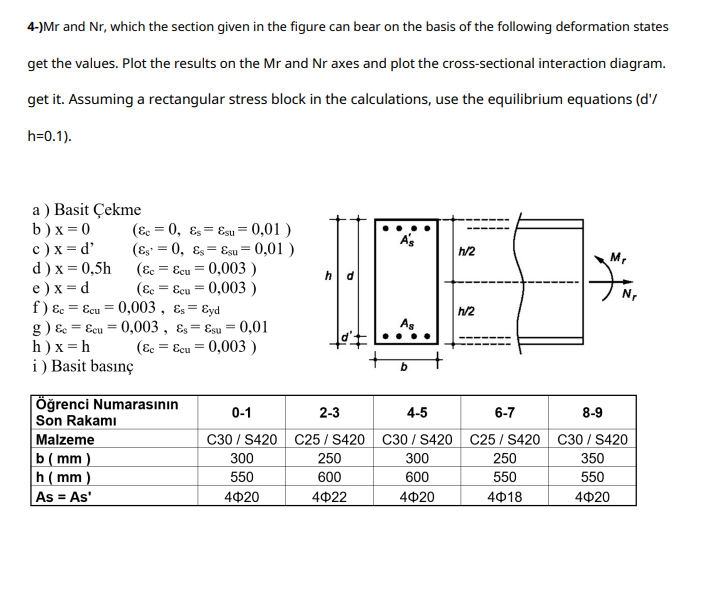

4 Mr And Nr Which The Section Given In The Figure Can Bear On The Basis Of The Following Deformation States Get The Va 1 (81.5 KiB) Viewed 34 times

4-)Mr and Nr, which the section given in the figure can bear on the basis of the following deformation states get the values. Plot the results on the Mr and Nr axes and plot the cross-sectional interaction diagram. get it. Assuming a rectangular stress block in the calculations, use the equilibrium equations (d'/ h=0.1). As 12 M, = h d a) Basit Çekme b)x=0 (Ec = 0, Es = Esu = 0,01 ) c)x= d' (€s: = 0, Es = Esu = 0,01 ) d) x = 0,5h (Ec = Ecu = 0,003) e)x=d (Ec = Ecu=0,003) f) &c = Ecu = 0,003, Es = Eyd g) &c = Ecu = 0,003, Es = Esu = 0,01 h)x= h (Ec = Ecu = 0,003 ) i) Basit basınç N, 9 1/2 As 9 Öğrenci Numarasının Son Rakami Malzeme b (mm) h (mm) As = As' 0-1 2-3 4-5 6-7 8-9 C30 / S420 C25 / S420 C30 / S420 C25/S420 C30 / S420 300 250 300 250 350 550 600 600 550 550 4020 4022 4020 4018 4020
