2nd-)There is a distributed load of 70 kN/m on the K102 beam forming the frame system. Net length of beam (internet) 4 m

Post by answerhappygod »

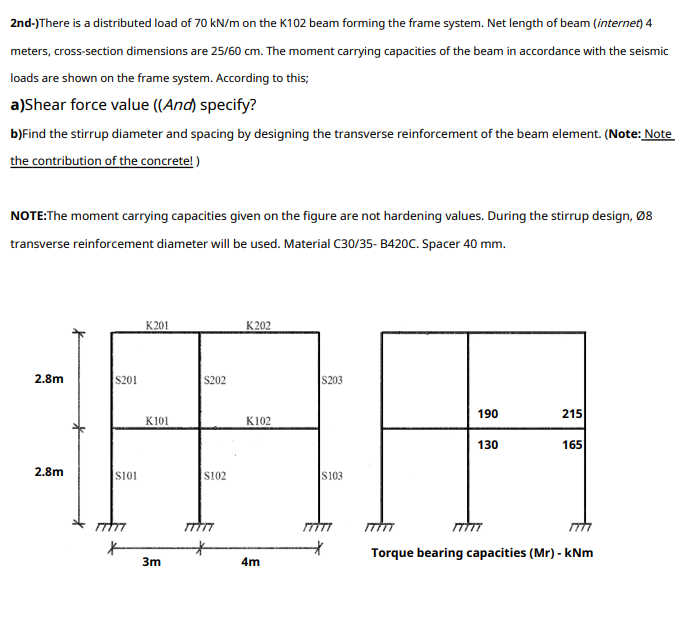

2nd There Is A Distributed Load Of 70 Kn M On The K102 Beam Forming The Frame System Net Length Of Beam Internet 4 M 1
2nd There Is A Distributed Load Of 70 Kn M On The K102 Beam Forming The Frame System Net Length Of Beam Internet 4 M 1 (84.85 KiB) Viewed 27 times
2nd-)There is a distributed load of 70 kN/m on the K102 beam forming the frame system. Net length of beam (internet) 4 meters, cross-section dimensions are 25/60 cm. The moment carrying capacities of the beam in accordance with the seismic loads are shown on the frame system. According to this; a)Shear force value ((And) specify? b)Find the stirrup diameter and spacing by designing the transverse reinforcement of the beam element. (Note: Note the contribution of the concrete!) NOTE:The moment carrying capacities given on the figure are not hardening values. During the stirrup design, Ø8 transverse reinforcement diameter will be used. Material C30/35- B420C. Spacer 40 mm. K201 K202 2.8m S201 S202 S203 190 215 K101 FHA K102 130 165 2.8m S101 S102 S103 Torque bearing capacities (Mr) - kNm 3m 4m
