Q2. In the figure shown, Pipe A is 15cm, pipes C and D are 8-cm-diameter. All are cast iron. (1) Determine the flow rate
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q2. In the figure shown, Pipe A is 15cm, pipes C and D are 8-cm-diameter. All are cast iron. (1) Determine the flow rate

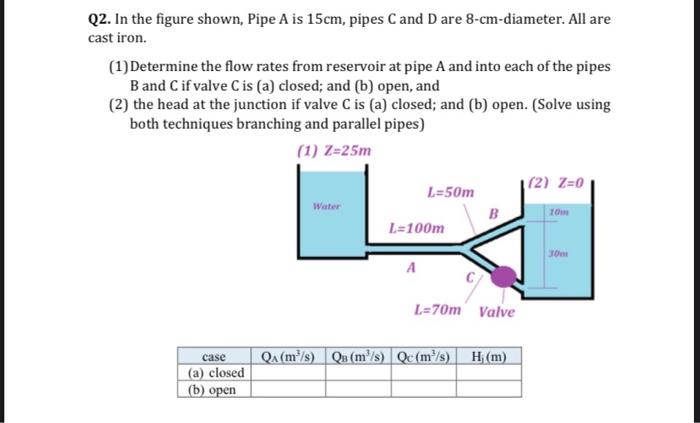

Q2. In the figure shown, Pipe A is 15cm, pipes C and D are 8-cm-diameter. All are cast iron. (1) Determine the flow rates from reservoir at pipe A and into each of the pipes Band C if valve Cis (a) closed; and (b) open, and (2) the head at the junction if valve C is (a) closed; and (b) open. (Solve using both techniques branching and parallel pipes) (1) Z=25m (2) Z=0 L=50m Water B TO L100m A L=70m Valve case QA(m /s) Qu(m/s) Qc (m”/s) H (m) (a) closed (b) open
