Q1. In the figure shown, there are 40-m of 5-cm pipe, 25-m of 15-cm pipe, and 45- m of 7.5-cm pipe, all cast iron. There

[answerhappygod]

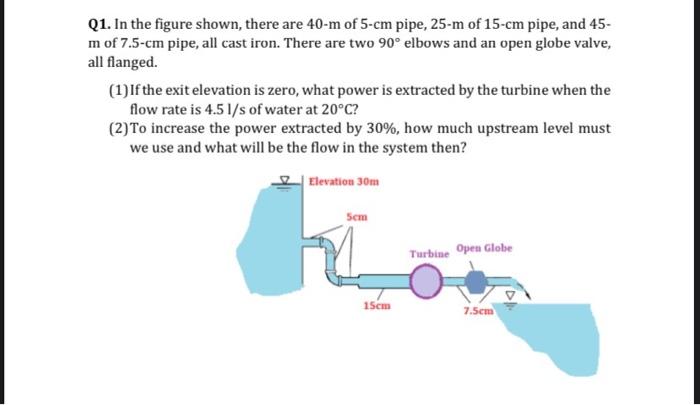

Q1 In The Figure Shown There Are 40 M Of 5 Cm Pipe 25 M Of 15 Cm Pipe And 45 M Of 7 5 Cm Pipe All Cast Iron There 1 (26.61 KiB) Viewed 30 times

Q1. In the figure shown, there are 40-m of 5-cm pipe, 25-m of 15-cm pipe, and 45- m of 7.5-cm pipe, all cast iron. There are two 90° elbows and an open globe valve, all flanged. (1)If the exit elevation is zero, what power is extracted by the turbine when the flow rate is 4.51/s of water at 20°C? (2)To increase the power extracted by 30%, how much upstream level must we use and what will be the flow in the system then? Elevation 30m Sem Turbine Open Globe 15cm 7.5cm
