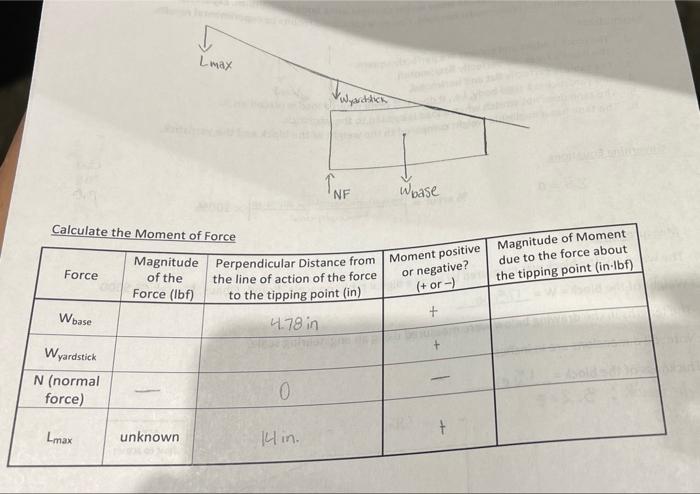

D Lmax Wya chick TNE Woase Calculate the Moment of Force Magnitude of Moment due to the force about the tipping point (in lbf) Magnitude Perpendicular Distance from Moment positive the line of action of the force to the tipping point (in) Force of the Force (lbf) or negative? (+ or -) Wbase + 4.78 in Wyardstick N (normal force) 0 + Lmax unknown 14 in.

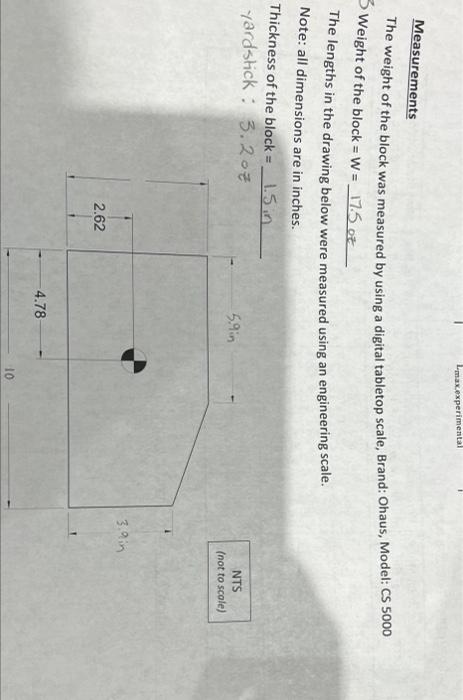

Lmax experimental Measurements The weight of the block was measured by using a digital tabletop scale, Brand: Ohaus, Model: CS 5000 3 Weight of the block = W = 17.508 The lengths in the drawing below were measured using an engineering scale. Note: all dimensions are in inches. Thickness of the block = _1.5 in yardstick : 3.207 5.95 NTS (not to scale) 3.9in 2.62 1 4.78 10
