14.(20 pts) One side of a dam is exposed to water. On this side, 7m the cross-sectional shape is a quarter-circle with a

Post by answerhappygod »

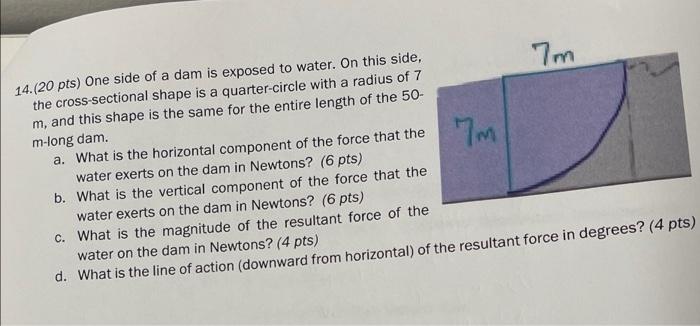

14 20 Pts One Side Of A Dam Is Exposed To Water On This Side 7m The Cross Sectional Shape Is A Quarter Circle With A 1
14 20 Pts One Side Of A Dam Is Exposed To Water On This Side 7m The Cross Sectional Shape Is A Quarter Circle With A 1 (36.37 KiB) Viewed 24 times
14.(20 pts) One side of a dam is exposed to water. On this side, 7m the cross-sectional shape is a quarter-circle with a radius of 7 m, and this shape is the same for the entire length of the 50- m-long dam. a. What is the horizontal component of the force that the water exerts on the dam in Newtons? (6 pts) b. What is the vertical component of the force that the water exerts on the dam in Newtons? (6 pts) C. What is the magnitude of the resultant force of the water on the dam in Newtons? (4 pts) d. What is the line of action (downward from horizontal) of the resultant force in degrees? (4 pts)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
