For this project, you will design a concrete pedestal for a statue that is to sit in front of Town Hall. Here's the stor

[answerhappygod]

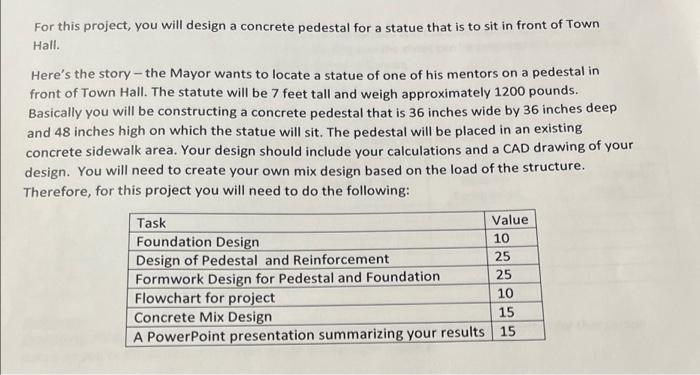

For This Project You Will Design A Concrete Pedestal For A Statue That Is To Sit In Front Of Town Hall Here S The Stor 1 (46.31 KiB) Viewed 51 times

For this project, you will design a concrete pedestal for a statue that is to sit in front of Town Hall. Here's the story - the Mayor wants to locate a statue of one of his mentors on a pedestal in front of Town Hall. The statute will be 7 feet tall and weigh approximately 1200 pounds. Basically you will be constructing a concrete pedestal that is 36 inches wide by 36 inches deep and 48 inches high on which the statue will sit. The pedestal will be placed in an existing concrete sidewalk area. Your design should include your calculations and a CAD drawing of your design. You will need to create your own mix design based on the load of the structure. Therefore, for this project you will need to do the following: 10 Task Value Foundation Design Design of Pedestal and Reinforcement 25 Formwork Design for Pedestal and Foundation 25 Flowchart for project 10 Concrete Mix Design 15 A PowerPoint presentation summarizing your results 15
