Can You please put this template into the drawing?
And also the scale.
Template is: 10 / 7.5
*This will be printed on B size (11" x 17") paper -----so make
accordingly
Can You Please Put This Template Into The Drawing And Also The Scale Template Is 10 7 5 This Will Be Printed On B 1 (38.6 KiB) Viewed 24 times
Can You Please Put This Template Into The Drawing And Also The Scale Template Is 10 7 5 This Will Be Printed On B 2 (34.51 KiB) Viewed 24 times

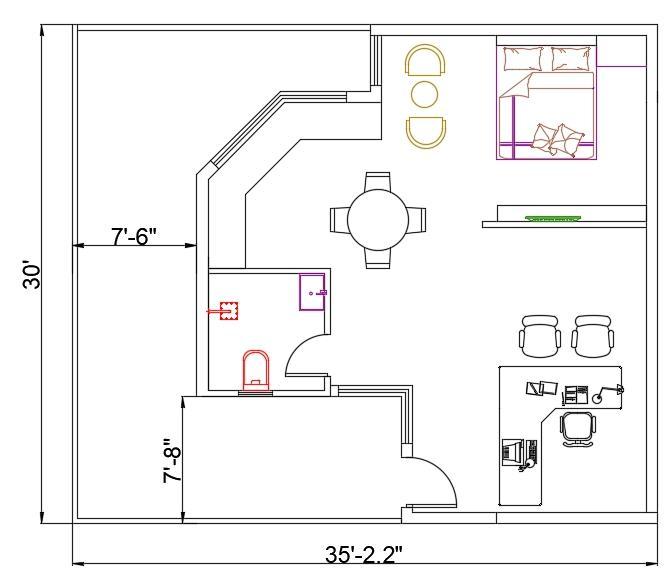

COD 7'-6" 30' 7'-8" 35-2.2"
ILLINOIS INSTITUTE OF TECHNOLOGY CHICAGO, ILLINOIS DR.BY: Ahmad Yamien SEC:EGG225-02 DATE: 4/26/2022 SCALE: NO:
