An oil pumping rig is shown in the figure. The flexible pump rod D is fastened to the sector at E and is always vertical

Post by answerhappygod »

An Oil Pumping Rig Is Shown In The Figure The Flexible Pump Rod D Is Fastened To The Sector At E And Is Always Vertical 1
An Oil Pumping Rig Is Shown In The Figure The Flexible Pump Rod D Is Fastened To The Sector At E And Is Always Vertical 1 (326.99 KiB) Viewed 21 times

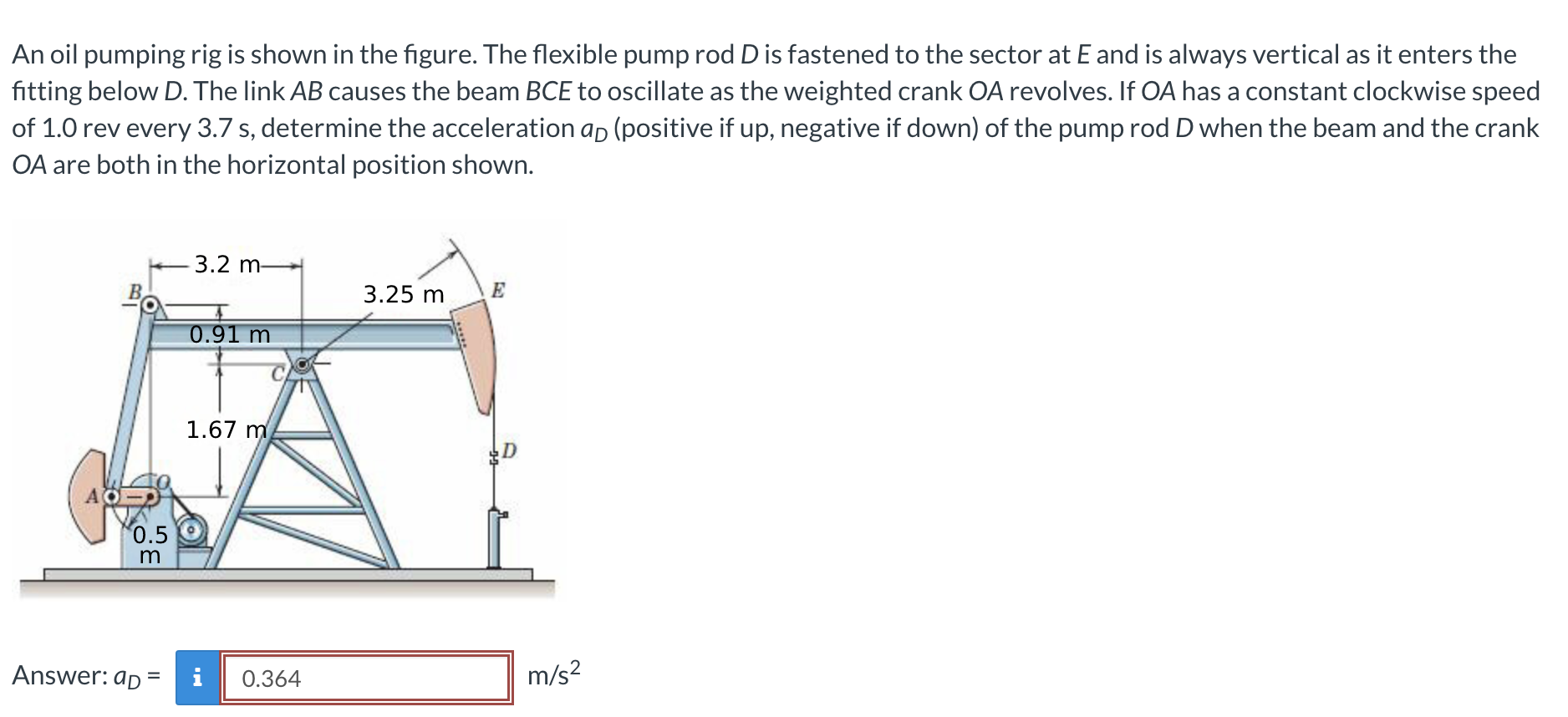

An oil pumping rig is shown in the figure. The flexible pump rod D is fastened to the sector at E and is always vertical as it enters the fitting below D. The link AB causes the beam BCE to oscillate as the weighted crank OA revolves. If OA has a constant clockwise speed of 1.0 rev every 3.7 s, determine the acceleration ap (positive if up, negative if down) of the pump rod D when the beam and the crank OA are both in the horizontal position shown. 3.2 m 3.25 m E 0.91 m 1.67 m 0.5 m Answer: ap = i 0.364 m/s2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
