12 in. Problem: (Beam Deflection) 1" thick steel tube Concrete 24 in. w=? 2 W Shapes 2 W Shapes L = 24 ft E = 29 x 10 ps
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
12 in. Problem: (Beam Deflection) 1" thick steel tube Concrete 24 in. w=? 2 W Shapes 2 W Shapes L = 24 ft E = 29 x 10 ps

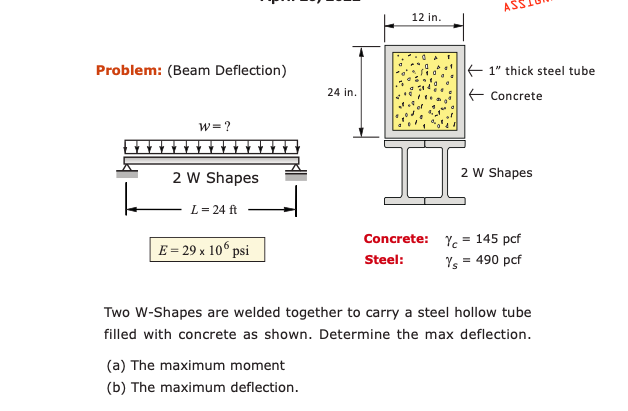

12 in. Problem: (Beam Deflection) 1" thick steel tube Concrete 24 in. w=? 2 W Shapes 2 W Shapes L = 24 ft E = 29 x 10 psi Concrete: Ye = 145 pcf Steel: Ys = 490 pcf Two W-Shapes are welded together to carry a steel hollow tube filled with concrete as shown. Determine the max deflection. (a) The maximum moment (b) The maximum deflection.
